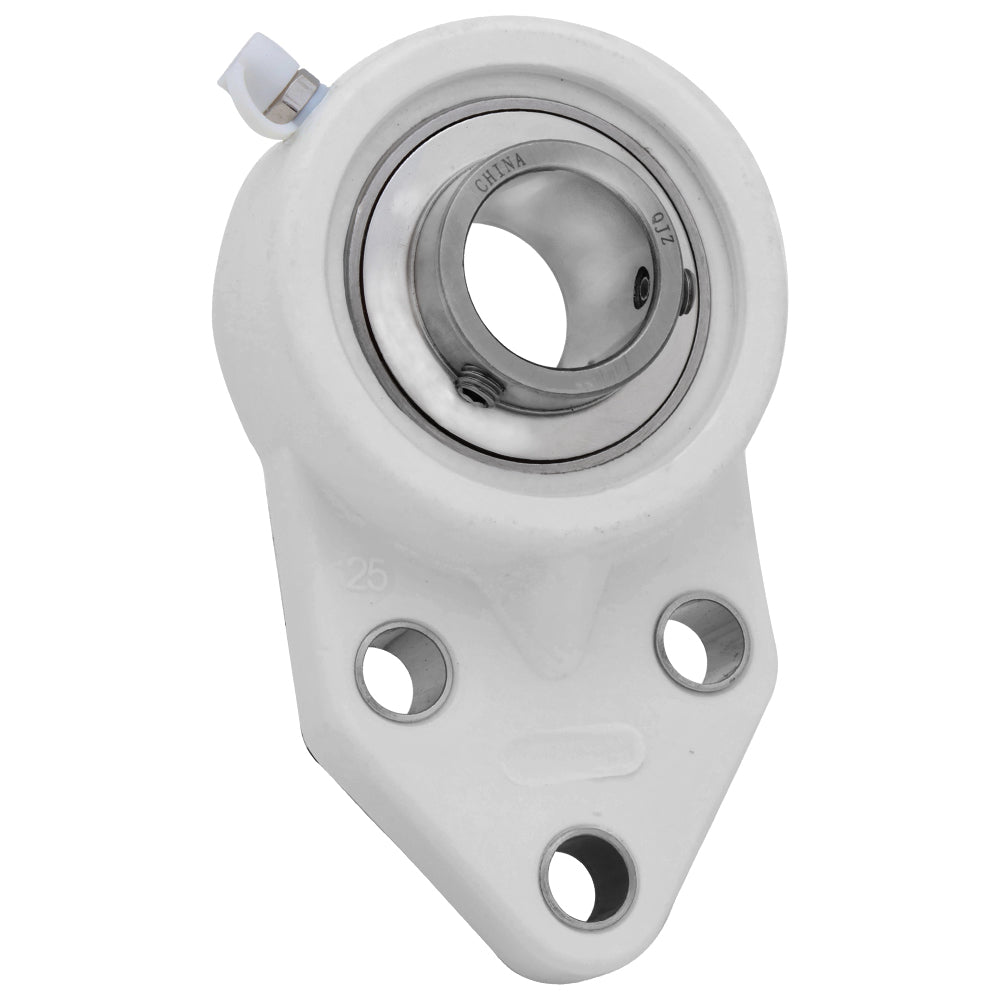

SPUCFB203, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 0.669 in Bore (ID), Stainless Steel Insert Bearing: SUC203, Housing: FB203 (P)

Out of stock
SKU: SPUCFB203
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$34.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB203
  • Insert Bearing SUC203
  • Cast Iron Housing FB203 (P)
  • Bore (ID) 0.67 in
  • Length 1.575 in | 40 mm
  • Height 1.177 in | 29.9 mm
  • Width 2.165 in | 55 mm

Please contact us for more information on dimensions.

Description

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB203
Bore ID 0.669 in | 17 mm
Length 1.575 in | 40 mm
Width 2.165 in | 55 mm
Height (ThickNess) 1.177 in | 29.9 mm
Top Bolt to Top Bolt 1.181 in | 30 mm
Bottom Bolt Hole to Top Bolt Hole 1.063 in | 27 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
