QJZ

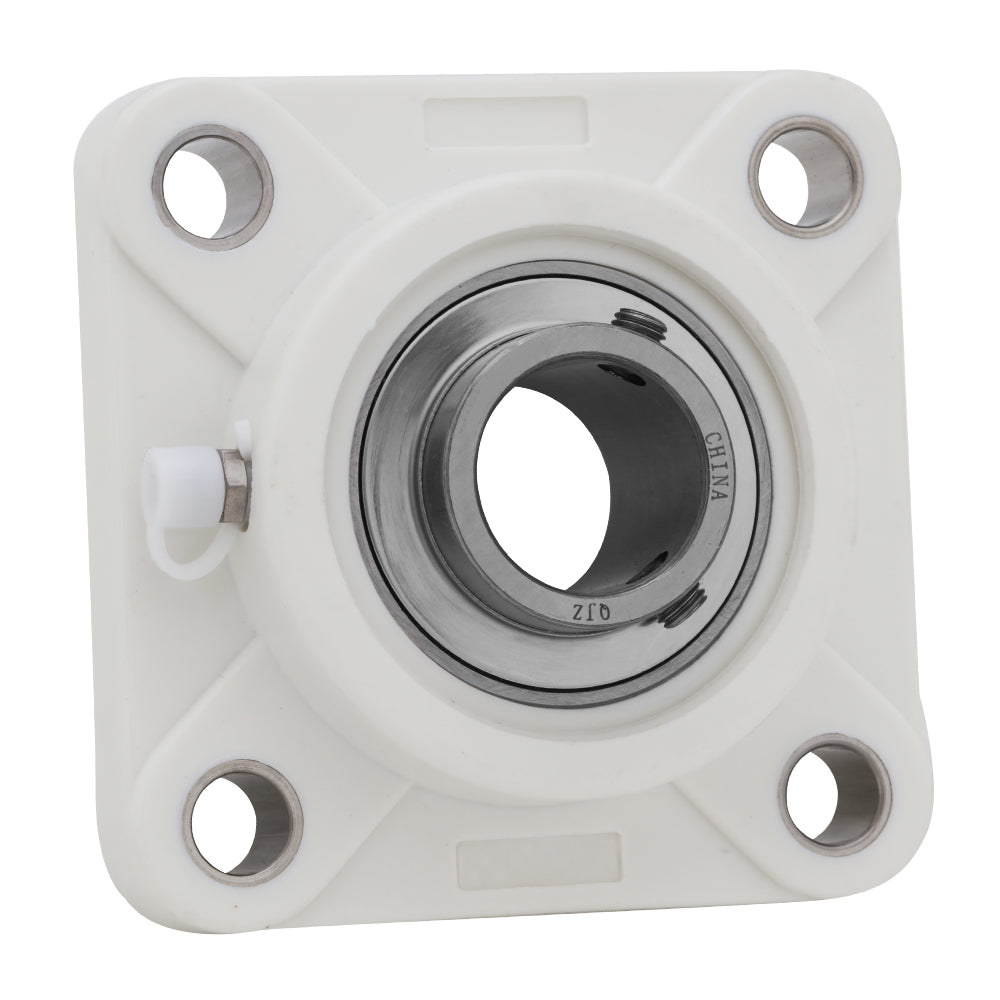

SPUCF214, Plastic 4-Bolt Mounted Unit Bearing, 2.756 in Bore (ID), Insert Bearing: SUC214, Housing: F214 (P)

Out of stock
SKU: SPUCF214
$191.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCF214
  • Insert Bearing SUC214
  • Housing F214 (P)
  • Bore (ID) 2.756 in | 70 mm
  • Length 7.36 in | 187 mm
  • Height (Thickness) 2.74 in | 69.7 mm
  • Bolt-to-Bolt Spacing 5.87 in | 149 mm
Description

4-Bolt Flange Mounted Unit Bearing

The UC Series 4-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCF214
Bore ID 2.756 in | 70 mm
Length 7.36 in | 187 mm
Height 2.74 in | 69.7 mm
Bolt to Bolt 5.87 in | 149 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
