SPUCF209-27, Plastic 4-Bolt Mounted Unit Bearing, 1.688 in Bore (ID), Insert Bearing: SUC209-27, Housing: F209 ( P)

In stock
SKU: SPUCF209-27
$75.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCF209-27
  • Insert Bearing SUC209-27
  • Housing F209 ( P)
  • Bore (ID) 1.688 in | 42.863 mm
  • Length 5.394 in | 137 mm
  • Height (Thickness) 2.087 in | 53 mm
  • Bolt-to-Bolt Spacing 4.134 in | 105 mm
Description

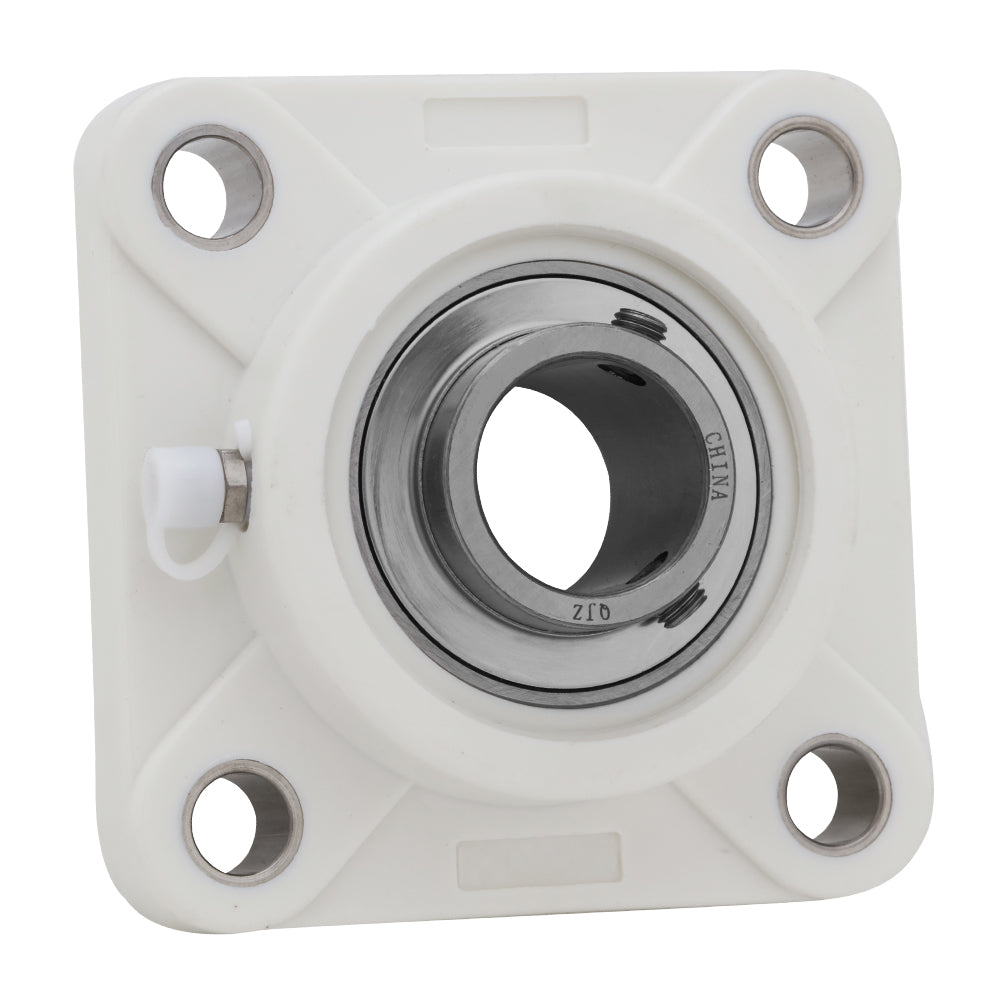

4-Bolt Flange Mounted Unit Bearing

The UC Series 4-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCF209-27
Bore ID 1.688 in | 42.863 mm
Length 5.394 in | 137 mm
Height 2.087 in | 53 mm
Bolt to Bolt 4.134 in | 105 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
