SPUCF208-25, Plastic 4-Bolt Mounted Unit Bearing, 1.575 in Bore (ID), Insert Bearing: SUC208-40MM, Housing: F208 (P)

In stock
SKU: SPUCF208-25
$70.00
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCF208-25
  • Insert Bearing SUC208-40MM
  • Housing F208 (P)
  • Bore (ID) 1.575 in | 40 mm
  • Length 5.118 in | 130 mm
  • Height (Thickness) 1.811 in | 46 mm
  • Bolt-to-Bolt Spacing 4.016 in | 102 mm
Description

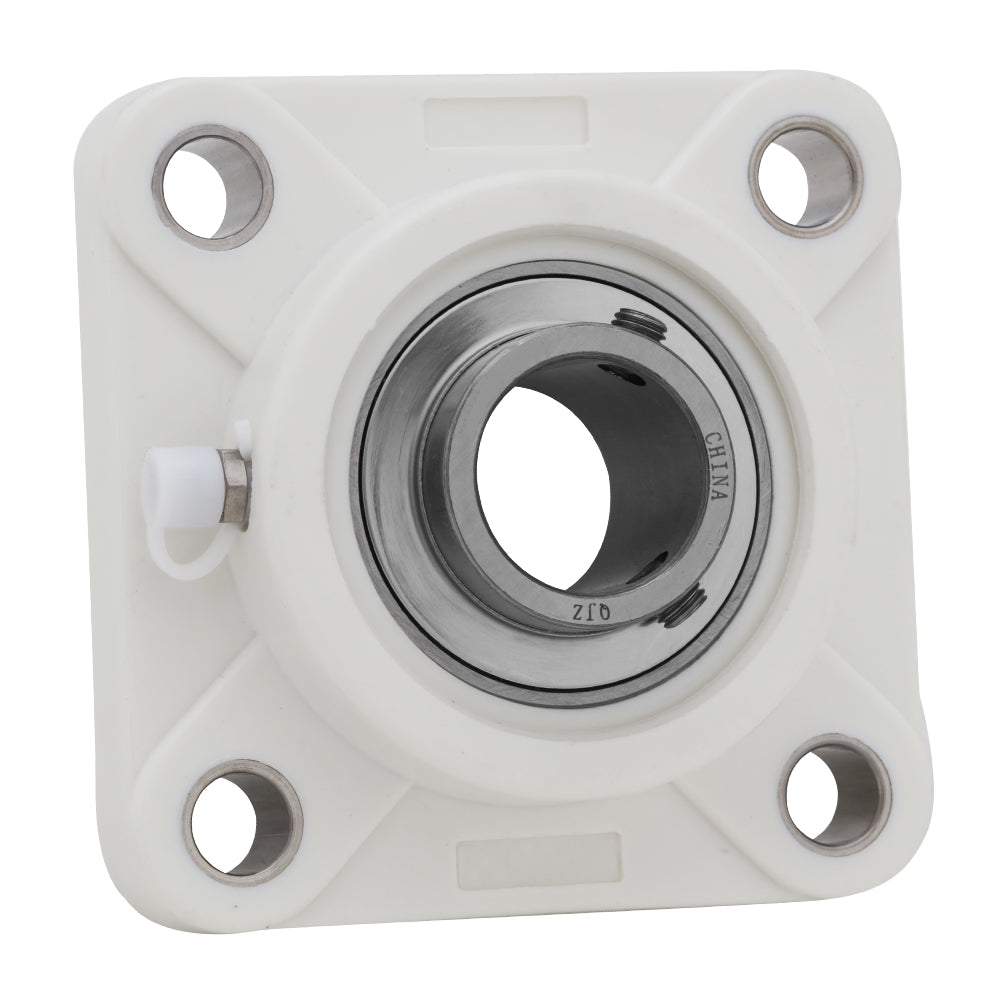

4-Bolt Flange Mounted Unit Bearing

The UC Series 4-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCF208-25
Bore ID 1.575 in | 40 mm
Length 5.118 in | 130 mm
Height 1.811 in | 46 mm
Bolt to Bolt 4.016 in | 102 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
