QJZ

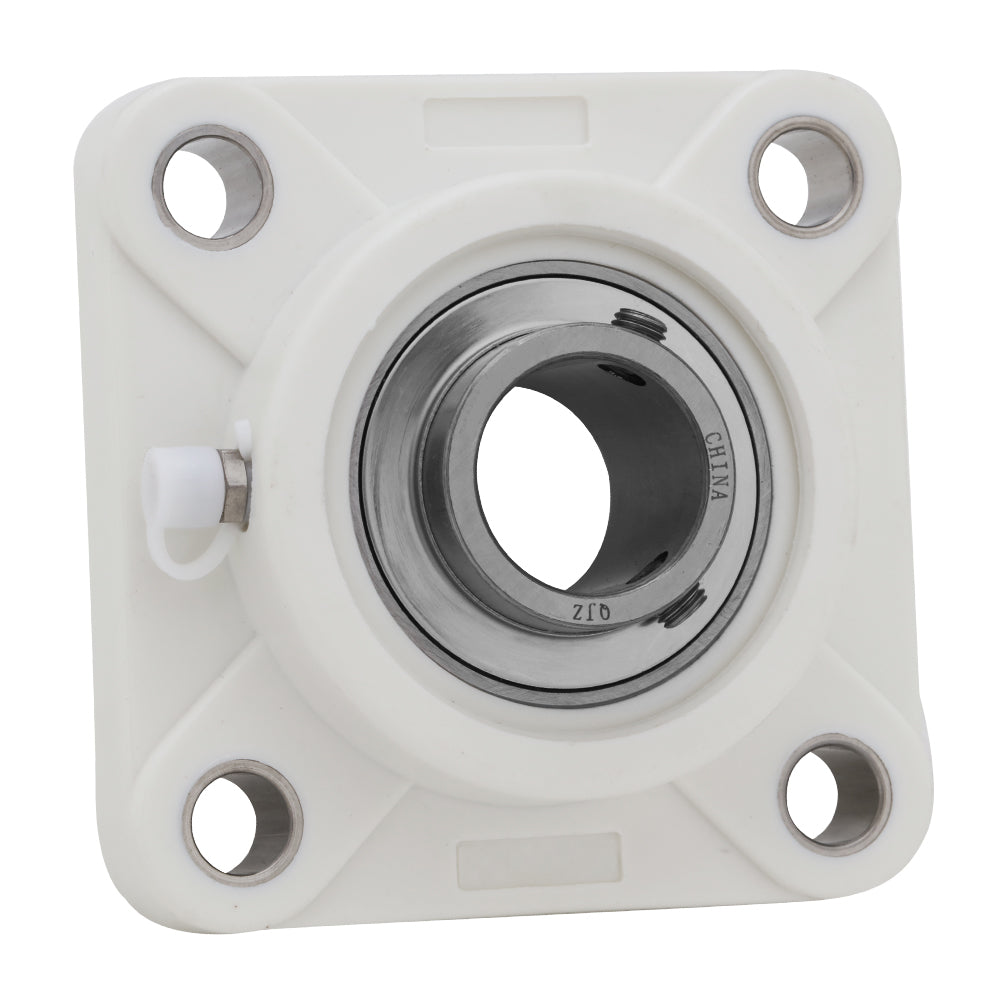

SPUCF205-15, Plastic 4-Bolt Mounted Unit Bearing, 0.938 in Bore (ID), Insert Bearing: SUC205-15, Housing: F205 (P)

In stock
SKU: SPUCF205-15
$30.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCF205-15
  • Insert Bearing SUC205-15
  • Housing F205 (P)
  • Bore (ID) 0.938 in | 23.813 mm
  • Length 3.74 in | 95 mm
  • Height (Thickness) 1.398 in | 35.5 mm
  • Bolt-to-Bolt Spacing 2.756 in | 70 mm
Description

4-Bolt Flange Mounted Unit Bearing

The UC Series 4-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCF205-15
Bore ID 0.938 in | 23.813 mm
Length 3.74 in | 95 mm
Height 1.398 in | 35.5 mm
Bolt to Bolt 2.756 in | 70 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
