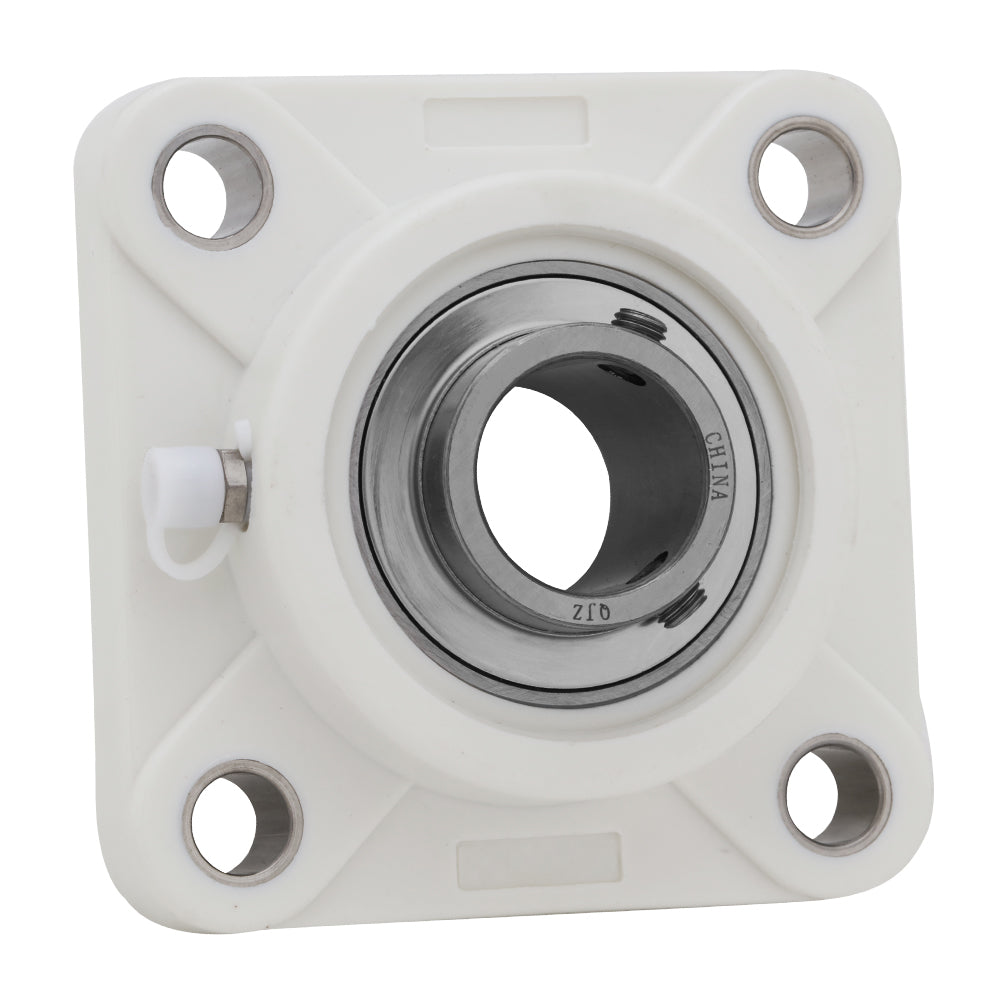

SPUCF204, Plastic 4-Bolt Mounted Unit Bearing, 0.787 in Bore (ID), Insert Bearing: SUC204-20MM, Housing: F204 (P)

In stock
SKU: SPUCF204
$32.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCF204
  • Insert Bearing SUC204-20MM
  • Housing F204 (P)
  • Bore (ID) 0.787 in | 20 mm
  • Length 3.386 in | 86 mm
  • Height (Thickness) 1.299 in | 33 mm
  • Bolt-to-Bolt Spacing 2.52 in | 64 mm
Description

4-Bolt Flange Mounted Unit Bearing

The UC Series 4-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCF204
Bore ID 0.787 in | 20 mm
Length 3.386 in | 86 mm
Height 1.299 in | 33 mm
Bolt to Bolt 2.52 in | 64 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
