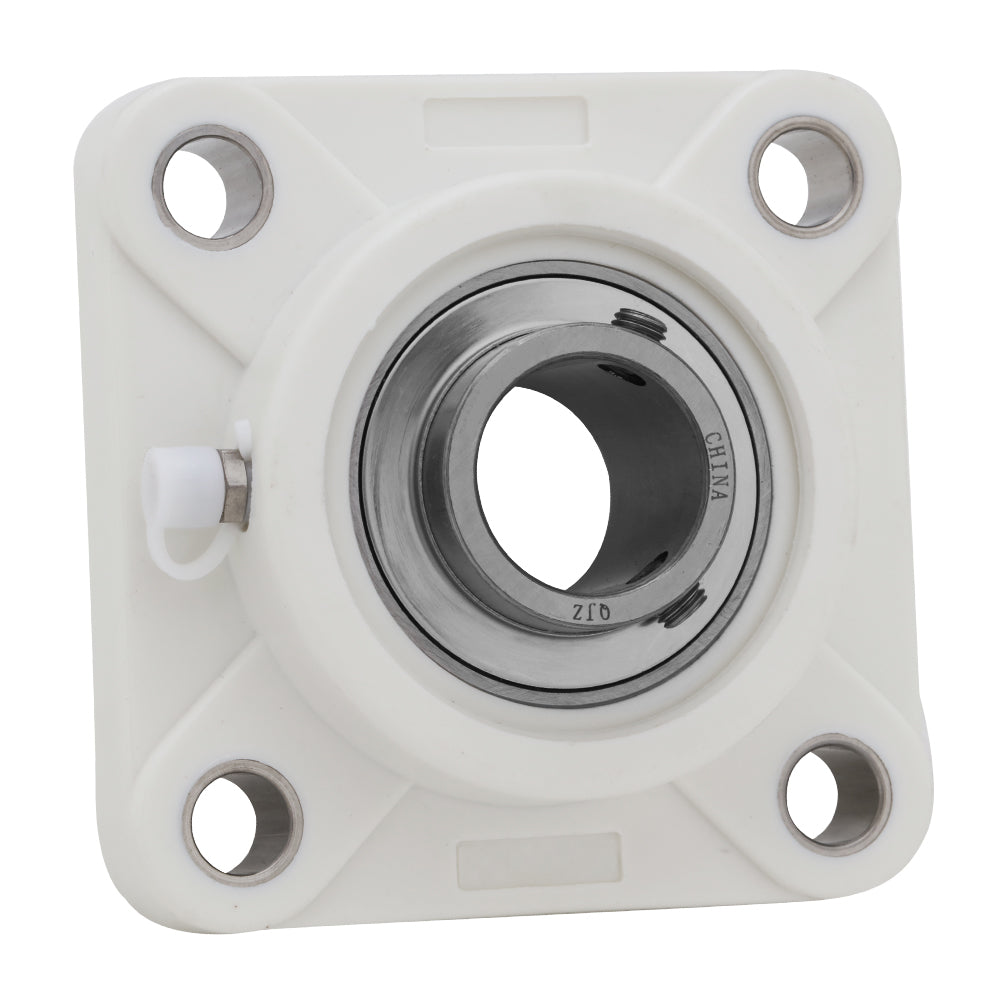

SPUCF203-11, Plastic 4-Bolt Mounted Unit Bearing, 0.688 in Bore (ID), Insert Bearing: SUC203-11, Housing: F203 (P)

Out of stock
SKU: SPUCF203-11
$38.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCF203-11
  • Insert Bearing SUC203-11
  • Housing F203 (P)
  • Bore (ID) 0.688 in | 17.463 mm
  • Length 2.992 in | 76 mm
  • Height (Thickness) 1.22 in | 31 mm
  • Bolt-to-Bolt Spacing 2.126 in | 54 mm
Description

4-Bolt Flange Mounted Unit Bearing

The UC Series 4-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCF203-11
Bore ID 0.688 in | 17.463 mm
Length 2.992 in | 76 mm
Height 1.22 in | 31 mm
Bolt to Bolt 2.126 in | 54 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
