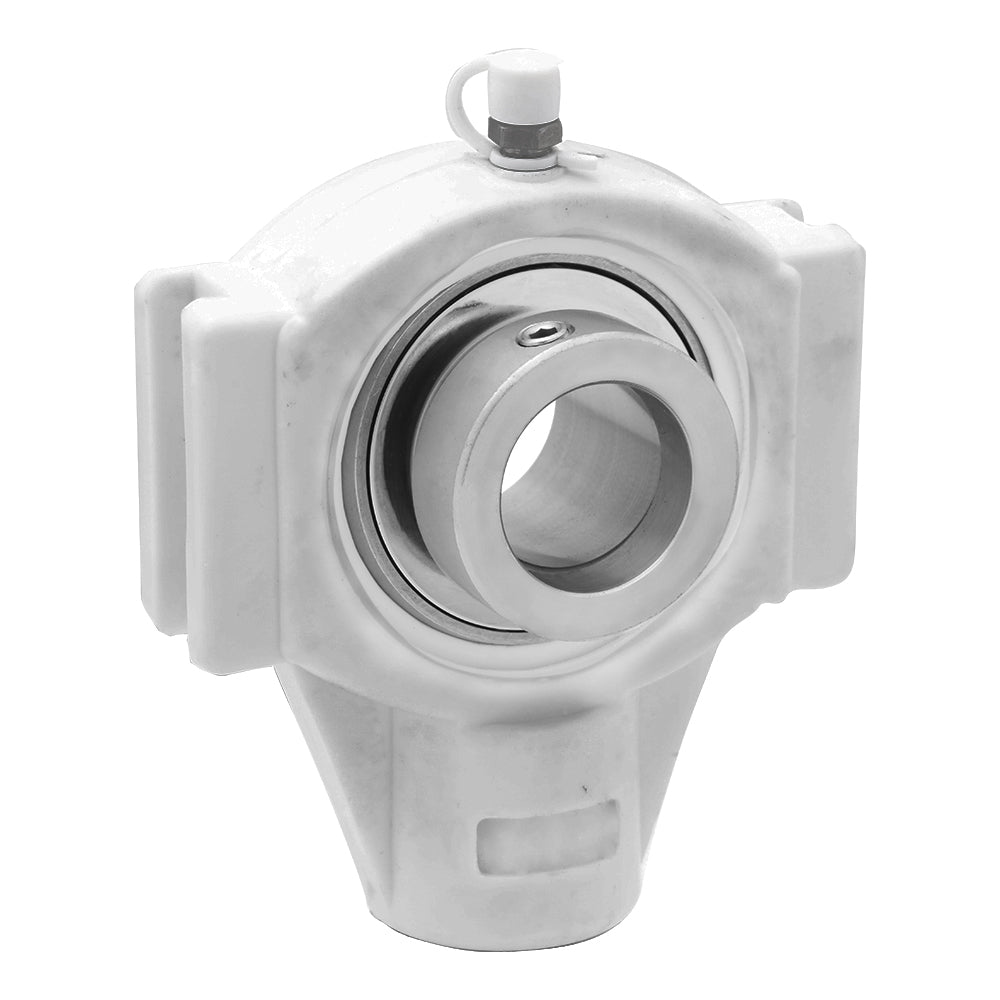

SPHCT209-45MM, Plastic Take-Up Mounted Unit Bearing, 1.772 in Bore (ID), Stainless Steel Insert Bearing: SHC209-45MM, Housing: T209 (P)
Regular price
$99.99
Couldn't load pickup availability
Plastic Take-Up Mounted Unit Bearing
The HC Series Take-Up Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an stainless steel insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.
| Part Number | SPHCT209-45MM |
|---|---|
| Bore ID | 1.772 in | 45 mm |
| Height (L) | 5.669 in | 144 mm |
| Width (A2) | 1.378 in | 35 mm |
| Slot to Slot (H1) | 4.016 in | 102 mm |
| Slot Length (L3) | 3.268 in | 83 mm |
| Length (H) | 4.606 in | 117 mm |
| Adjustment Screw Bore (N) | 1.142 in | 29 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
