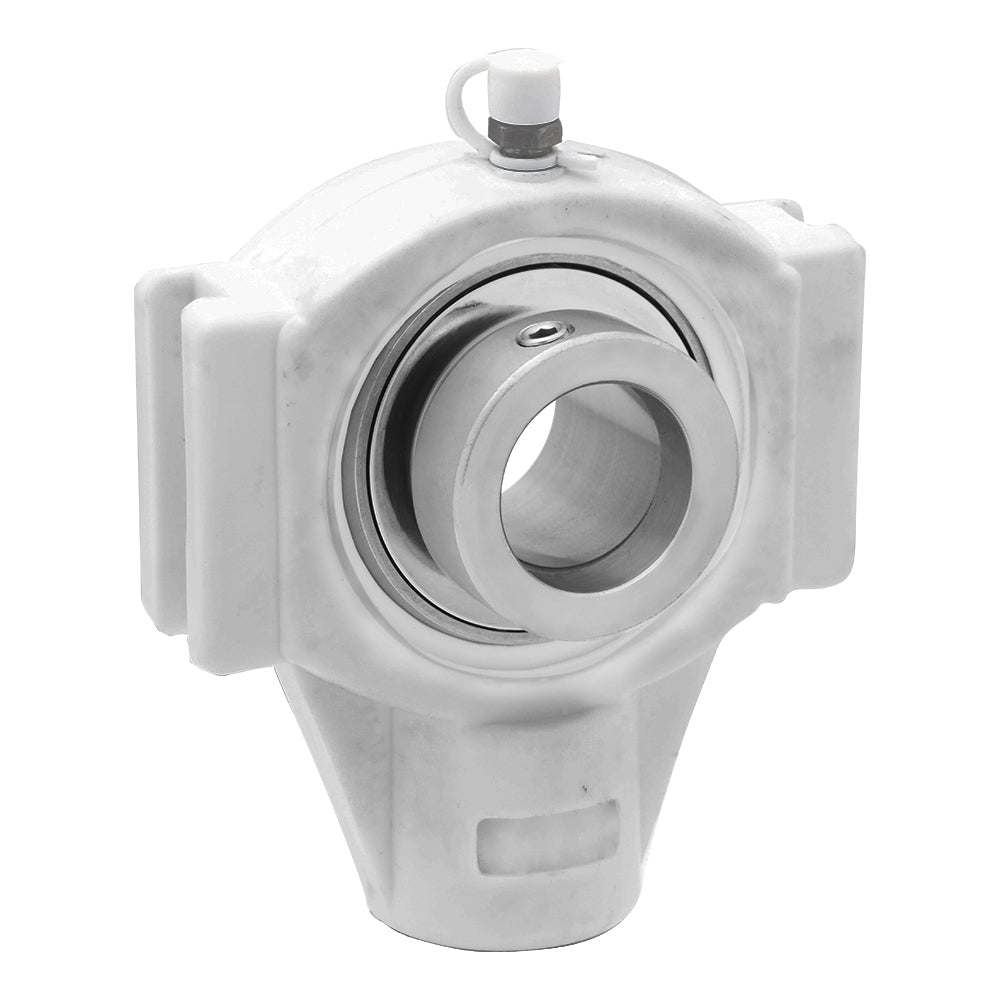

SPHCT207-23, Plastic Take-Up Mounted Unit Bearing, 1.438 in Bore (ID), Stainless Steel Insert Bearing: SHC207-23, Housing: T207 (P)
Regular price
$55.75
Couldn't load pickup availability
Plastic Take-Up Mounted Unit Bearing
The HC Series Take-Up Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an stainless steel insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.
| Part Number | SPHCT207-23 |
|---|---|
| Bore ID | 1.438 in | 36.513 mm |
| Height (L) | 5.079 in | 129 mm |
| Width (A2) | 1.181 in | 30 mm |
| Slot to Slot (H1) | 3.504 in | 89 mm |
| Slot Length (L3) | 2.52 in | 64 mm |
| Length (H) | 4.016 in | 102 mm |
| Adjustment Screw Bore (N) | 0.866 in | 22 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
