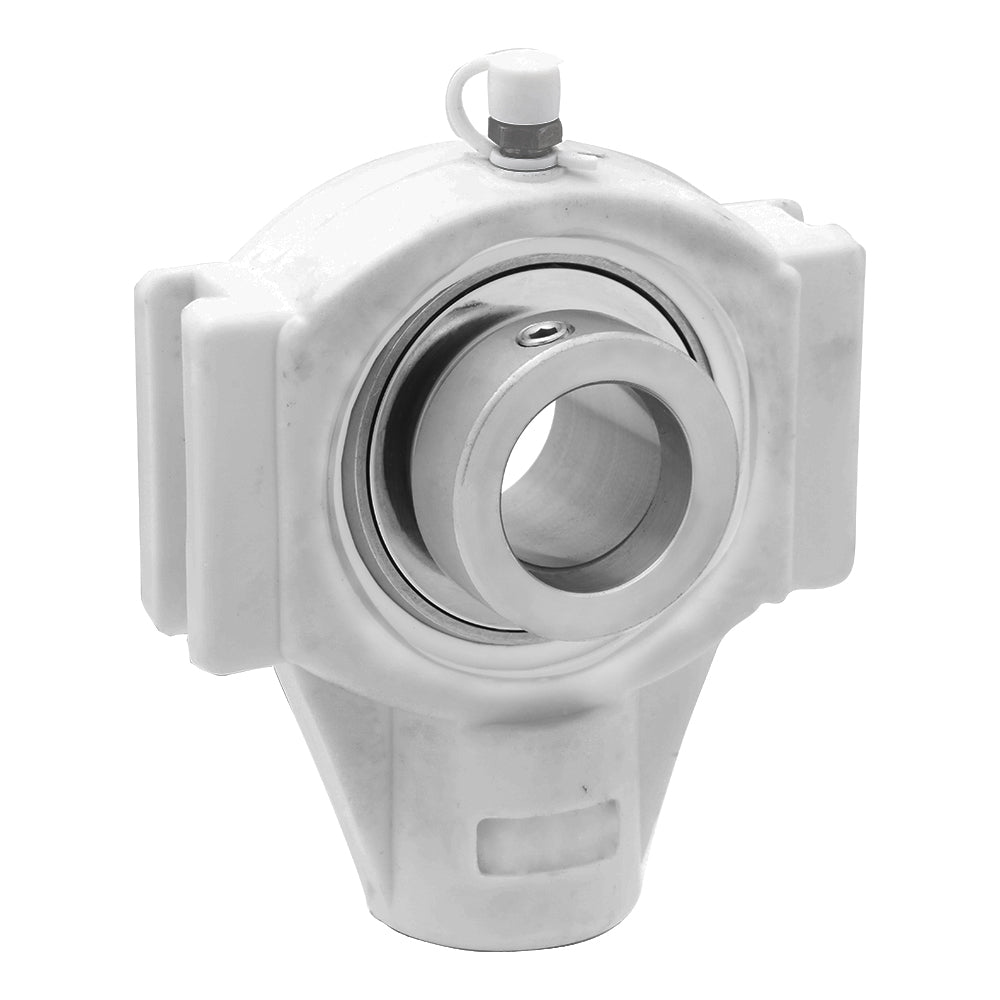

SPHCT205-14, Plastic Take-Up Mounted Unit Bearing, 0.875 in Bore (ID), Stainless Steel Insert Bearing: SHC205-14, Housing: T205 (P)
Regular price
$37.75
Couldn't load pickup availability
Plastic Take-Up Mounted Unit Bearing
The HC Series Take-Up Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an stainless steel insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.Β
| Part Number | SPHCT205-14 |
|---|---|
| Bore ID | 0.875 in | 22.225 mm |
| Height (L) | 3.819 in | 97 mm |
| Width (A2) | 0.945 in | 24 mm |
| Slot to Slot (H1) | 2.992 in | 76 mm |
| Slot Length (L3) | 2.008 in | 51 mm |
| Length (H) | 3.504 in | 89 mm |
| Adjustment Screw Bore (N) | 0.748 in | 19 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
