SPHCT202, Plastic Take-Up Mounted Unit Bearing, 0.591 in Bore (ID), Stainless Steel Insert Bearing: SHC202, Housing: T203 (P)
Regular price
$29.99
Couldn't load pickup availability

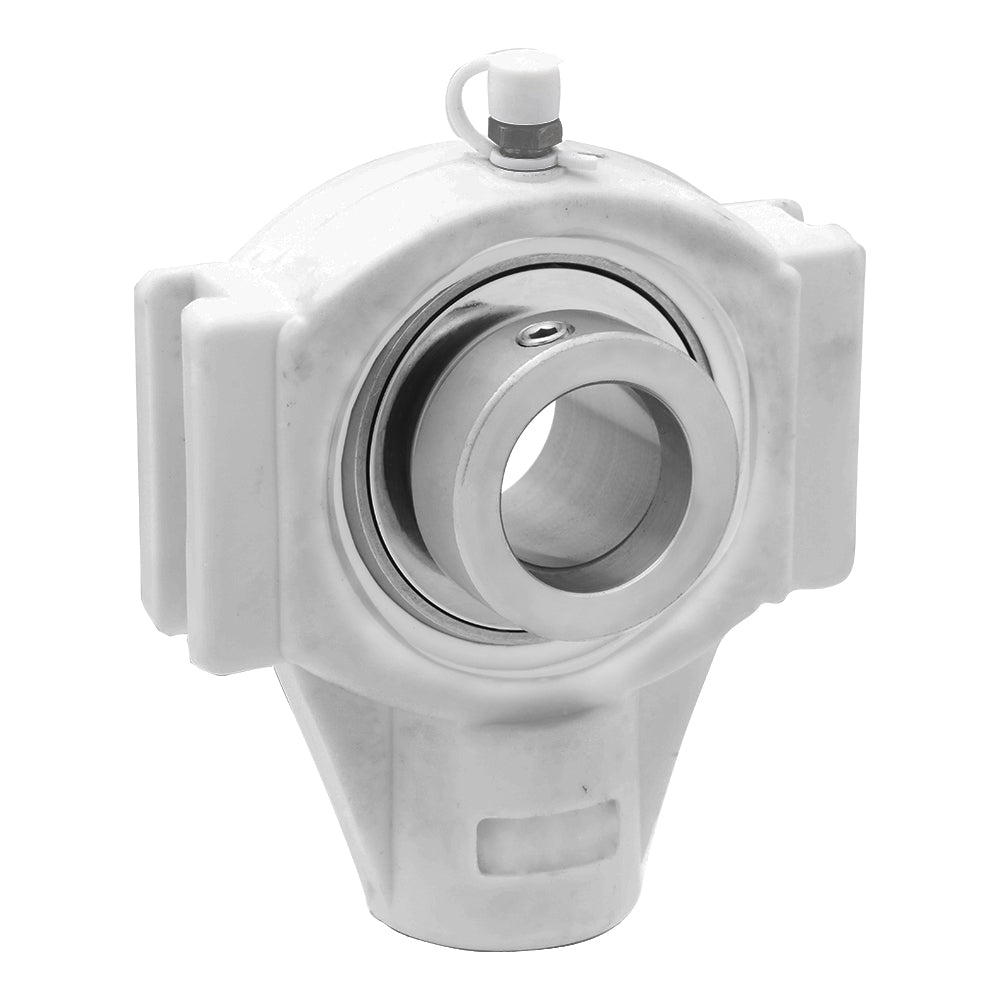

Plastic Take-Up Mounted Unit Bearing
The HC Series Take-Up Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an stainless steel insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.
| Part Number | SPHCT202 |
|---|---|
| Bore ID | 0.591 in | 15 mm |
| Height (L) | 3.465 in | 88 mm |
| Width (A2) | 0.827 in | 21 mm |
| Slot to Slot (H1) | 2.756 in | 70 mm |
| Slot Length (L3) | 1.811 in | 46 mm |
| Length (H) | 3.228 in | 82 mm |
| Adjustment Screw Bore (N) | 0.709 in | 18 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
