QJZ

SPHCT201, Plastic Take-Up Mounted Unit Bearing, 0.472 in Bore (ID), Stainless Steel Insert Bearing: SHC201, Housing: T203 (P)

Out of stock
SKU: SPHCT201
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$29.99
Product details
  • Type Mounted Unit Bearings
  • Part Number SPHCT201
  • Housing T203 (P)
  • Insert Bearing SHC201
  • Bore 0.472 in | 12 mm
  • Height 3.465 in | 88 mm
  • Length 3.228 in | 82 mm
  • Width 0.827 in | 21 mm
  • Slot to Slot 2.756 in | 70 mm

Please contact us if you are unsure about the fitment.

Description

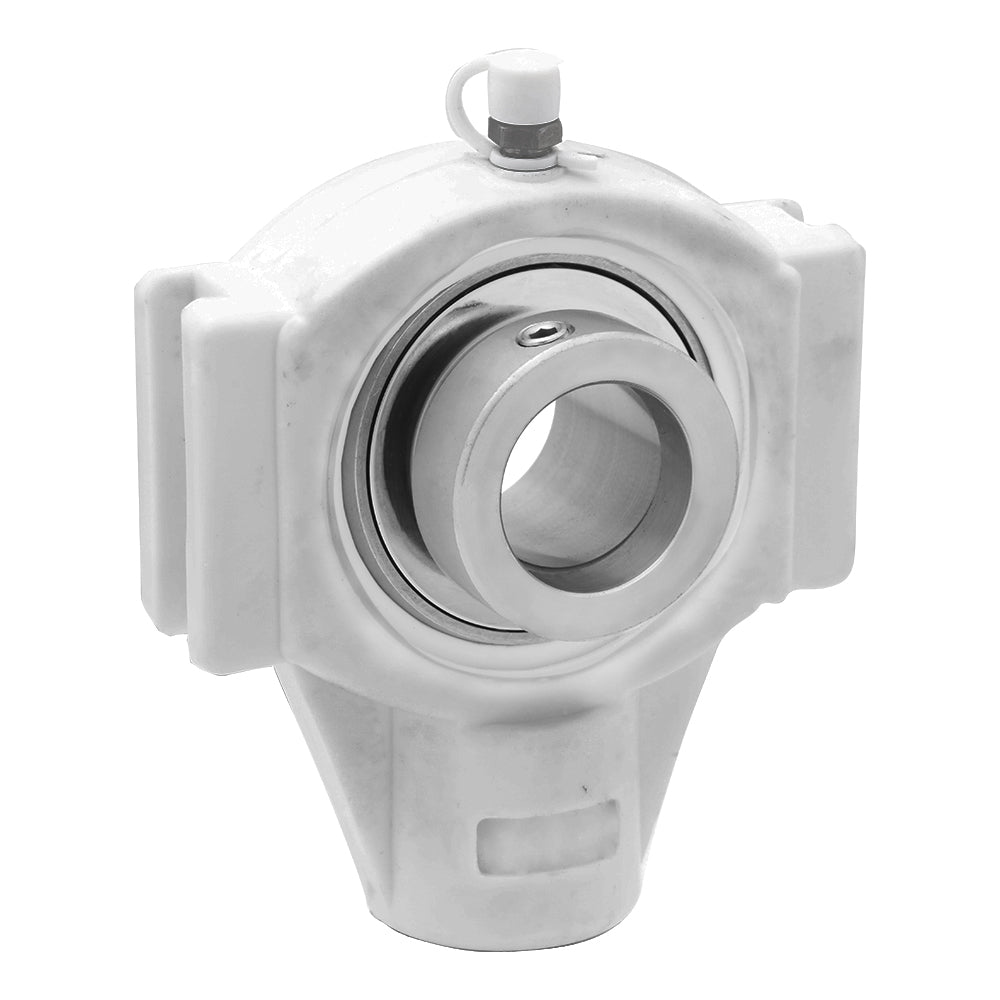

Plastic Take-Up Mounted Unit Bearing

The HC Series Take-Up Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an stainless steel insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPHCT201
Bore ID 0.472 in | 12 mm
Height (L) 3.465 in | 88 mm
Width (A2) 0.827 in | 21 mm
Slot to Slot (H1) 2.756 in | 70 mm
Slot Length (L3) 1.811 in | 46 mm
Length (H) 3.228 in | 82 mm
Adjustment Screw Bore (N) 0.709 in | 18 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
