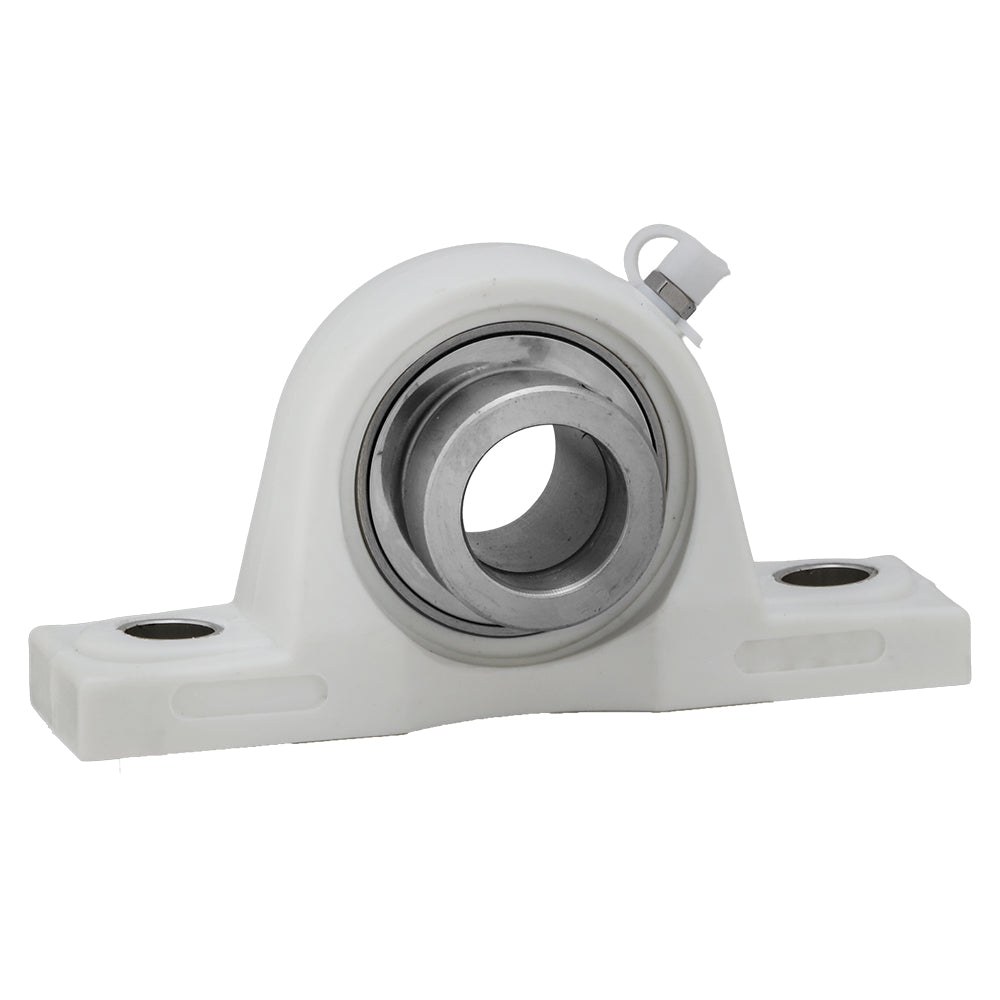

SPHCP207-23, Plastic Pillow Block Mounted Unit Bearing, 1.4375 in Bore (ID), Stainless Steel Insert Bearing: SHC207-23, Housing: P207 (P)

Out of stock
$0.00
Product details
  • Type Mounted Unit Bearings
  • Part Number SPHCP207-23
  • Housing P207 (P)
  • Insert Bearing SHC207-23
  • Bore (ID) 1.438 in | 36.513 mm
  • Height 3.622 in | 92 mm
  • Length 6.575 in | 167 mm
  • Bolt to Bolt 4.961 in | 126 mm
Description

Plastic Pillow Block Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCP207-23
Bore ID 1.438 in | 36.513 mm
Length 6.575 in | 167 mm
Width 1.89 in | 48 mm
Height (Thickness) 3.622 in | 92 mm
Bolt to Bolt 4.961 in | 126 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
