SPHCP206-19, Plastic Pillow Block Mounted Unit Bearing, 1.1875 in Bore (ID), Stainless Steel Insert Bearing: SHC206-19, Housing: P206 (P)

Out of stock
$0.00
Product details
  • Type Mounted Unit Bearings
  • Part Number SPHCP206-19
  • Housing P206 (P)
  • Insert Bearing SHC206-19
  • Bore (ID) 1.188 in | 30.163 mm
  • Height 3.228 in | 82 mm
  • Length 6.299 in | 160 mm
  • Bolt to Bolt 4.764 in | 121 mm
Description

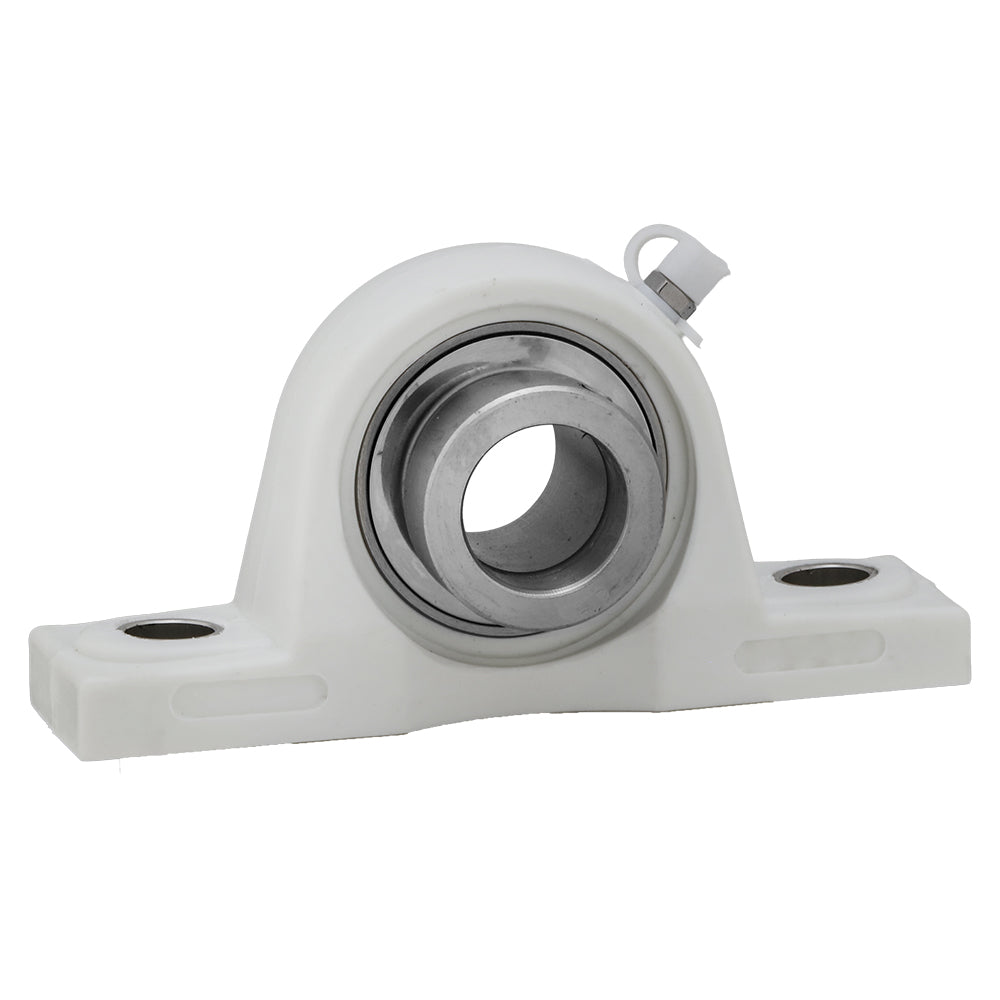

Plastic Pillow Block Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCP206-19
Bore ID 1.188 in | 30.163 mm
Length 6.299 in | 160 mm
Width 1.732 in | 44 mm
Height (Thickness) 3.228 in | 82 mm
Bolt to Bolt 4.764 in | 121 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
