QJZ

SPHCP205, Plastic Pillow Block Mounted Unit Bearing, 0.984 in Bore (ID), Stainless Steel Insert Bearing: SHC205, Housing: P205 (P)

Out of stock
$0.00
Product details
  • Type Mounted Unit Bearings
  • Part Number SPHCP205
  • Housing P205 (P)
  • Insert Bearing SHC205
  • Bore (ID) 0.984 in | 25 mm
  • Height 2.756 in | 70 mm
  • Length 5.512 in | 140 mm
  • Bolt to Bolt 4.134 in | 105 mm
Description

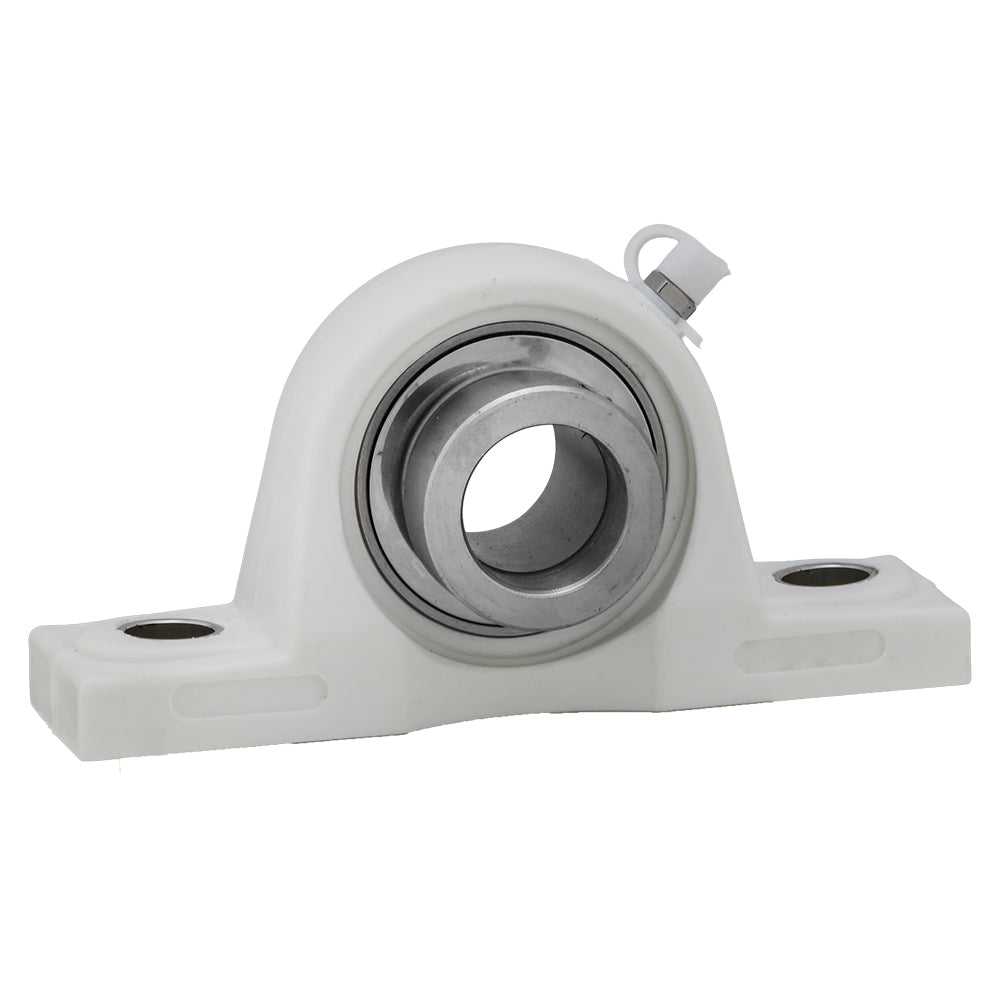

Plastic Pillow Block Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCP205
Bore ID 0.984 in | 25 mm
Length 5.512 in | 140 mm
Width 1.496 in | 38 mm
Height (Thickness) 2.756 in | 70 mm
Bolt to Bolt 4.134 in | 105 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
