QJZ

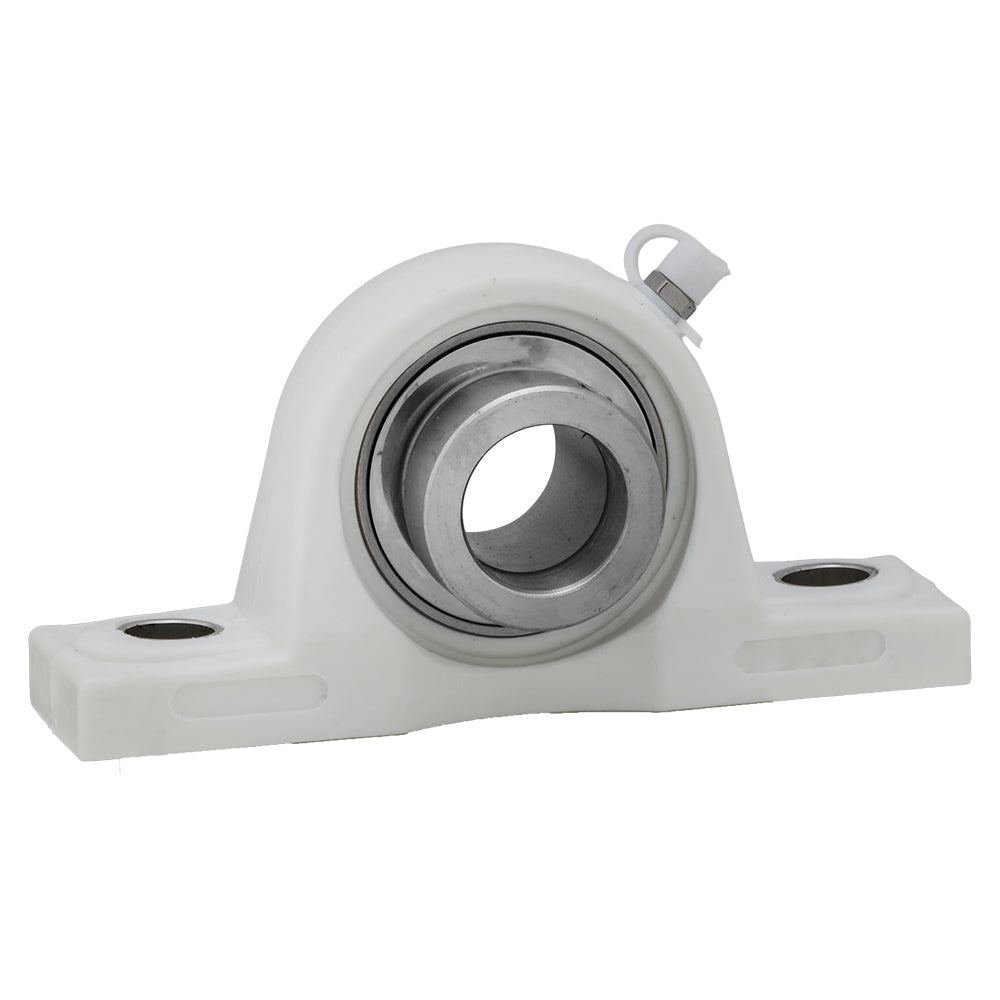

SPHCP204, Plastic Pillow Block Mounted Unit Bearing, 0.787 in Bore (ID), Stainless Steel Insert Bearing: SHC204, Housing: P204 (P)

Out of stock
$0.00
Product details
  • Type Mounted Unit Bearings
  • Part Number SPHCP204
  • Housing P204 (P)
  • Insert Bearing SHC204
  • Bore (ID) 0.787 in | 20 mm
  • Height 2.52 in | 64 mm
  • Length 5 in | 127 mm
  • Bolt to Bolt 3.78 in | 96 mm
Description

Plastic Pillow Block Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCP204
Bore ID 0.787 in | 20 mm
Length 5 in | 127 mm
Width 1.457 in | 37 mm
Height (Thickness) 2.52 in | 64 mm
Bolt to Bolt 3.78 in | 96 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
