QJZ

SPHCP209-27, Plastic Pillow Block Mounted Unit Bearing, 1.6875 in Bore (ID), Stainless Steel Insert Bearing: SHC209-27, Housing: P209 (P)

Out of stock
$0.00
Product details
  • Type Mounted Unit Bearings
  • Part Number SPHCP209-27
  • Housing P209 (P)
  • Insert Bearing SHC209-27
  • Bore (ID) 1.688 in | 42.863 mm
  • Height 4.17 in | 106 mm
  • Length 7.44 in | 189 mm
  • Bolt to Bolt 5.75 in | 146 mm
Description

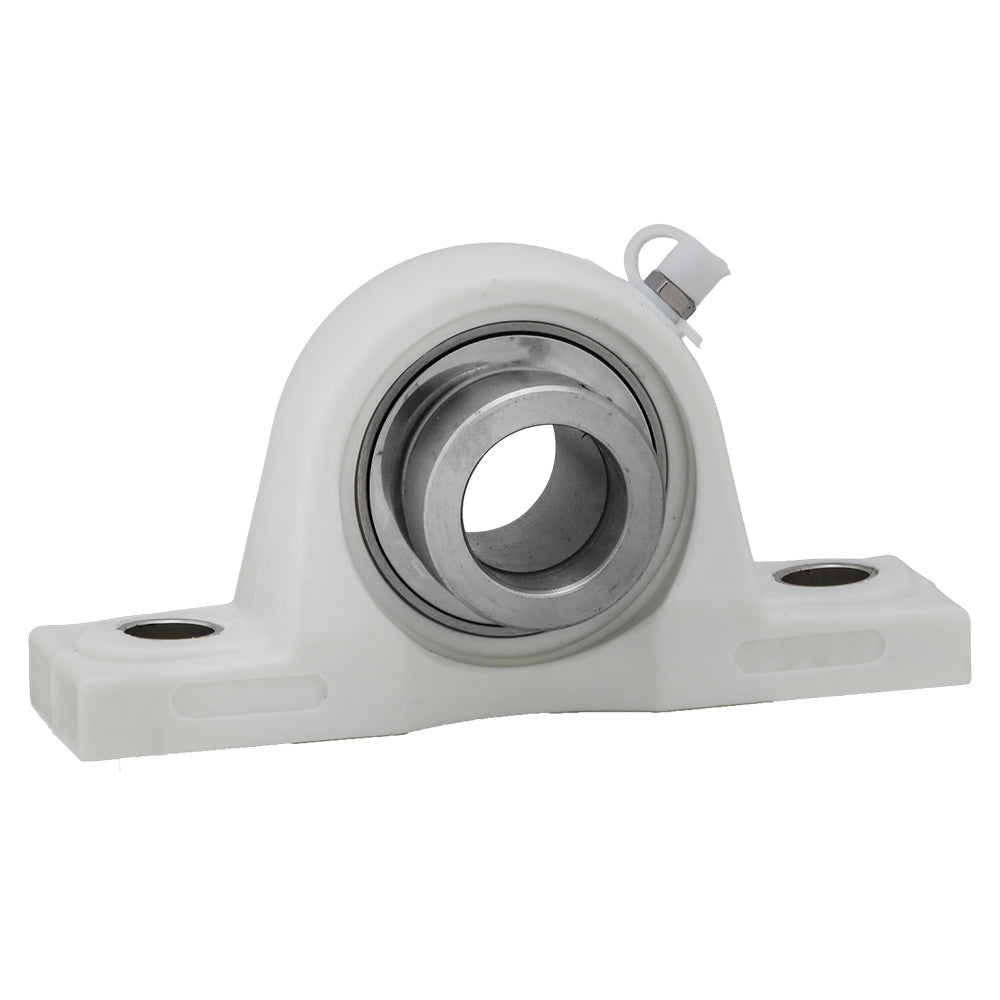

Plastic Pillow Block Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCP209-27
Bore ID 1.688 in | 42.863 mm
Length 7.44 in | 189 mm
Width 2.13 in | 54 mm
Height (Thickness) 4.17 in | 106 mm
Bolt to Bolt 5.75 in | 146 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
