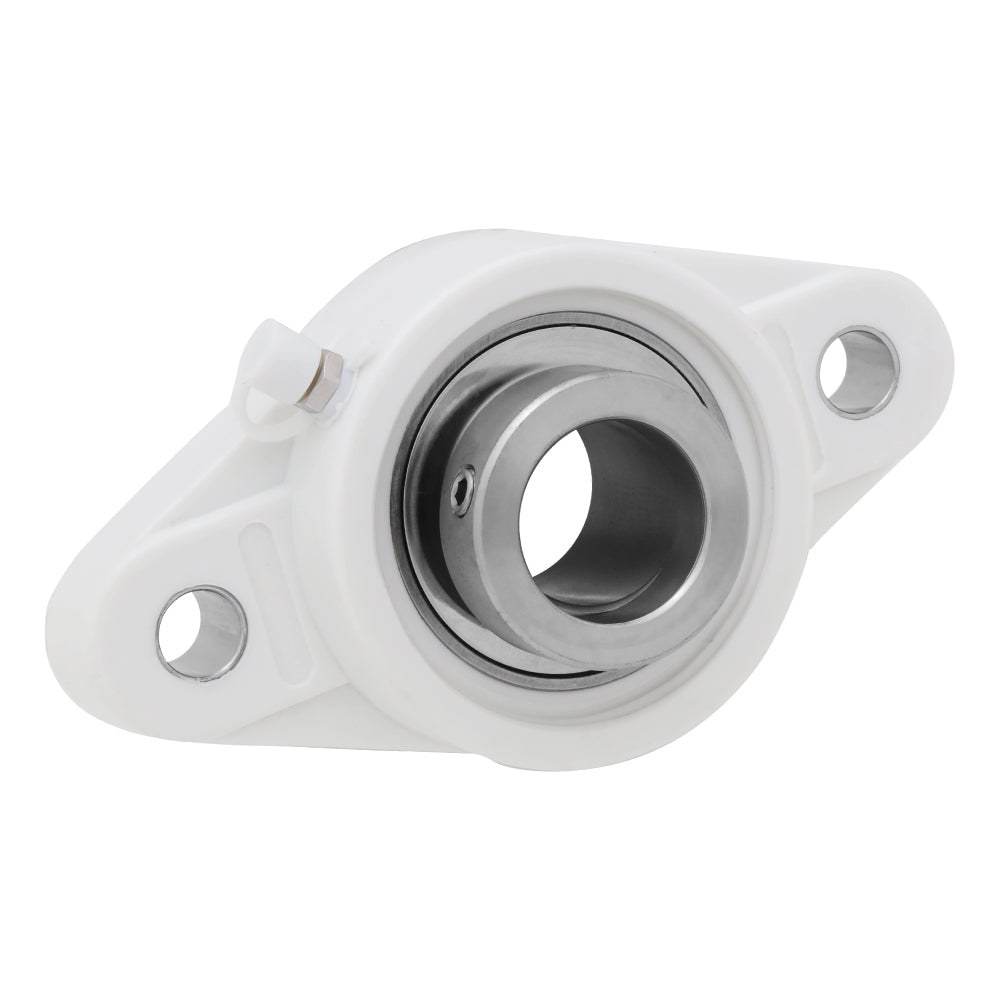

SPHCFL210-30, Plastic 2-Bolt Flange Mounted Unit Bearing, 1.875 in Bore (ID), Stainless Steel Insert Bearing: SHC210-30, Housing: PFL210
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
Regular price
$127.95
Couldn't load pickup availability
Plastic 2-Bolt Flange Mounted Unit Bearing
The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.
| Part Number | SPHCFL210-30 |
|---|---|
| Bore ID | 1.875 in | 47.625 mm |
| Length | 7.756 in | 197 mm |
| Width | 4.528 in | 115 mm |
| Height (Thickness) | 2.366 in | 60.1 mm |
| Bolt to Bolt | 6.181 in | 157 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
