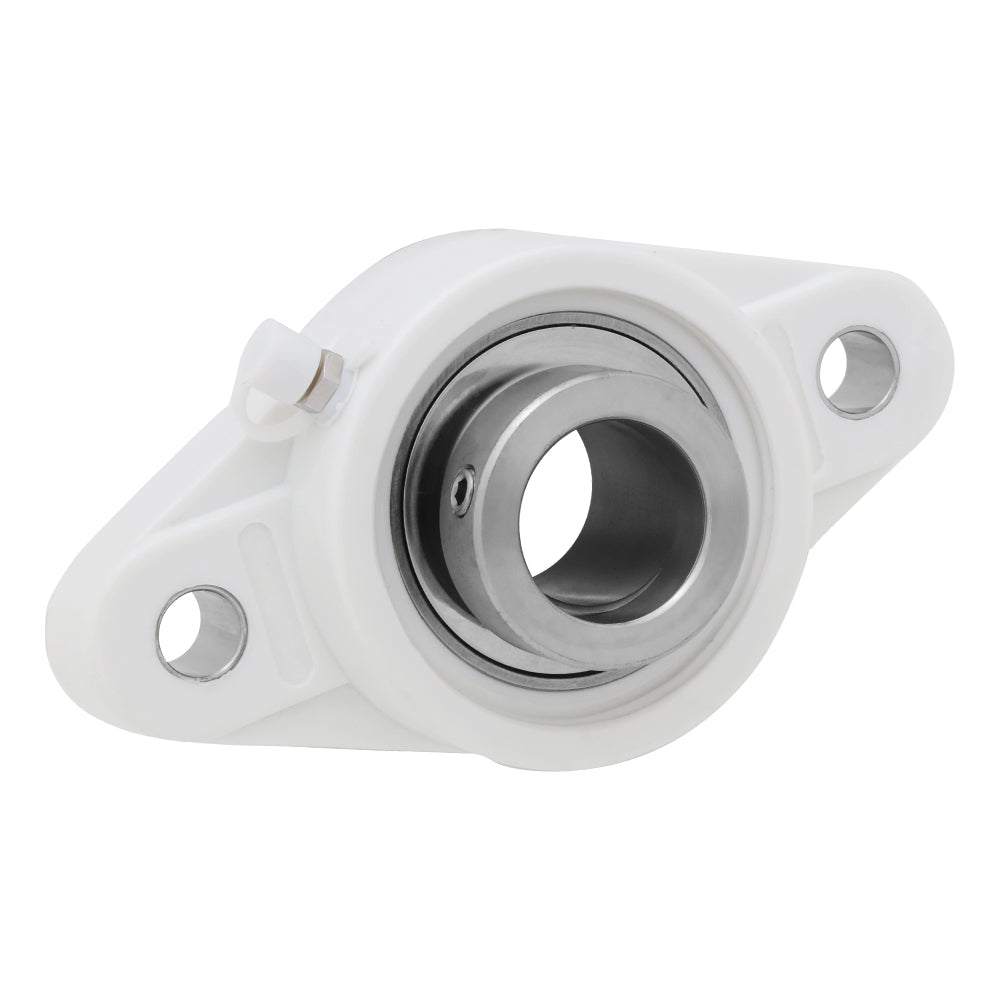

SPHCFL209-27, Plastic 2-Bolt Flange Mounted Unit Bearing, 1.688 in Bore (ID), Stainless Steel Insert Bearing: SHC209-27, Housing: PFL209

Out of stock
SKU: SPHCFL209-27
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$115.50
Product details
  • Part Number SPHCFL209-27
  • Housing PFL209
  • Insert Bearing SHC209-27
  • Bore (ID) 1.688 in | 42.863 mm
  • Bolt to Bolt 5.827 in | 148 mm
  • Length 7.402 in | 188 mm
  • Width 4.252 in | 108 mm
  • Height 2.24 in | 56.9 mm
Description

Plastic 2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCFL209-27
Bore ID 1.688 in | 42.863 mm
Length 7.402 in | 188 mm
Width 4.252 in | 108 mm
Height (Thickness) 2.24 in | 56.9 mm
Bolt to Bolt 5.827 in | 148 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
