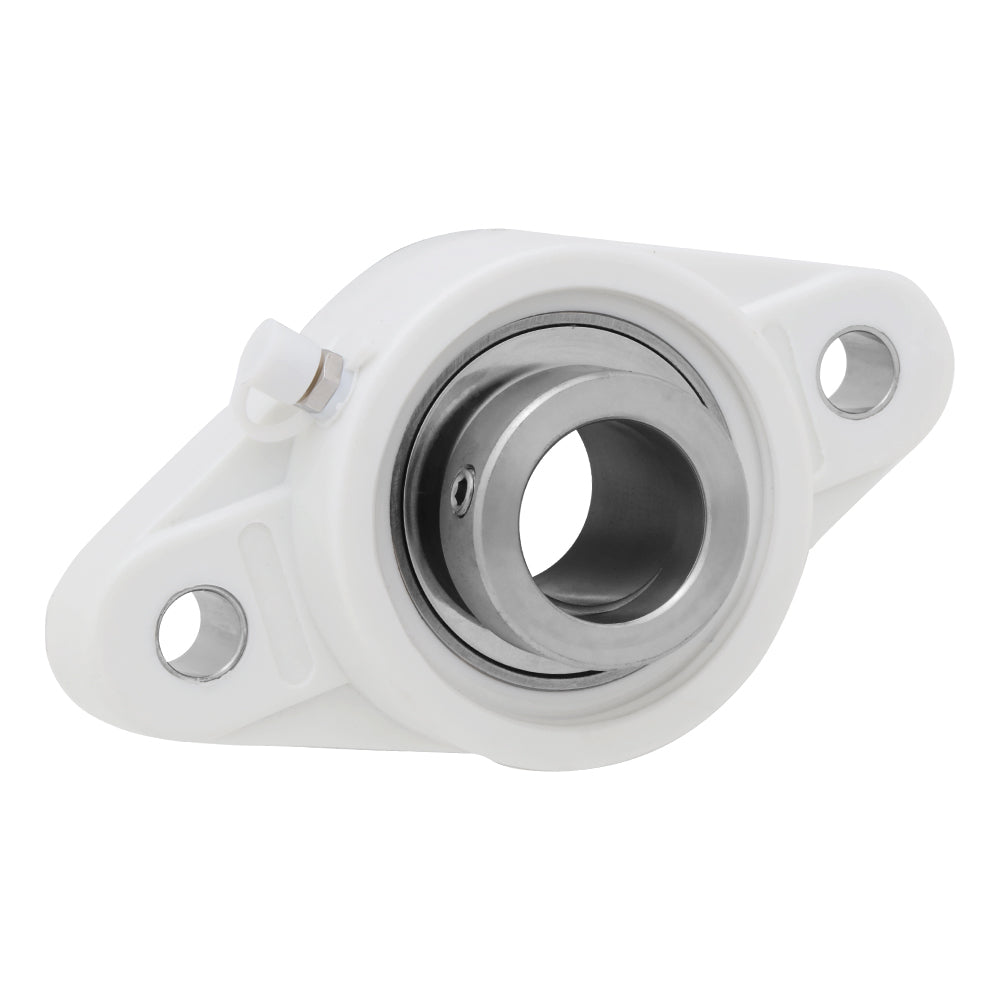

SPHCFL208-25, Plastic 2-Bolt Flange Mounted Unit Bearing, 1.563 in Bore (ID), Stainless Steel Insert Bearing: SHC208-25, Housing: PFL208

Out of stock
SKU: SPHCFL208-25
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$89.99
Product details
  • Part Number SPHCFL208-25
  • Housing PFL208
  • Insert Bearing SHC208-25
  • Bore (ID) 1.563 in | 39.688 mm
  • Bolt to Bolt 5.669 in | 144 mm
  • Length 6.89 in | 175 mm
  • Width 3.937 in | 100 mm
  • Height 2.201 in | 55.9 mm
Description

Plastic 2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCFL208-25
Bore ID 1.563 in | 39.688 mm
Length 6.89 in | 175 mm
Width 3.937 in | 100 mm
Height (Thickness) 2.201 in | 55.9 mm
Bolt to Bolt 5.669 in | 144 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
