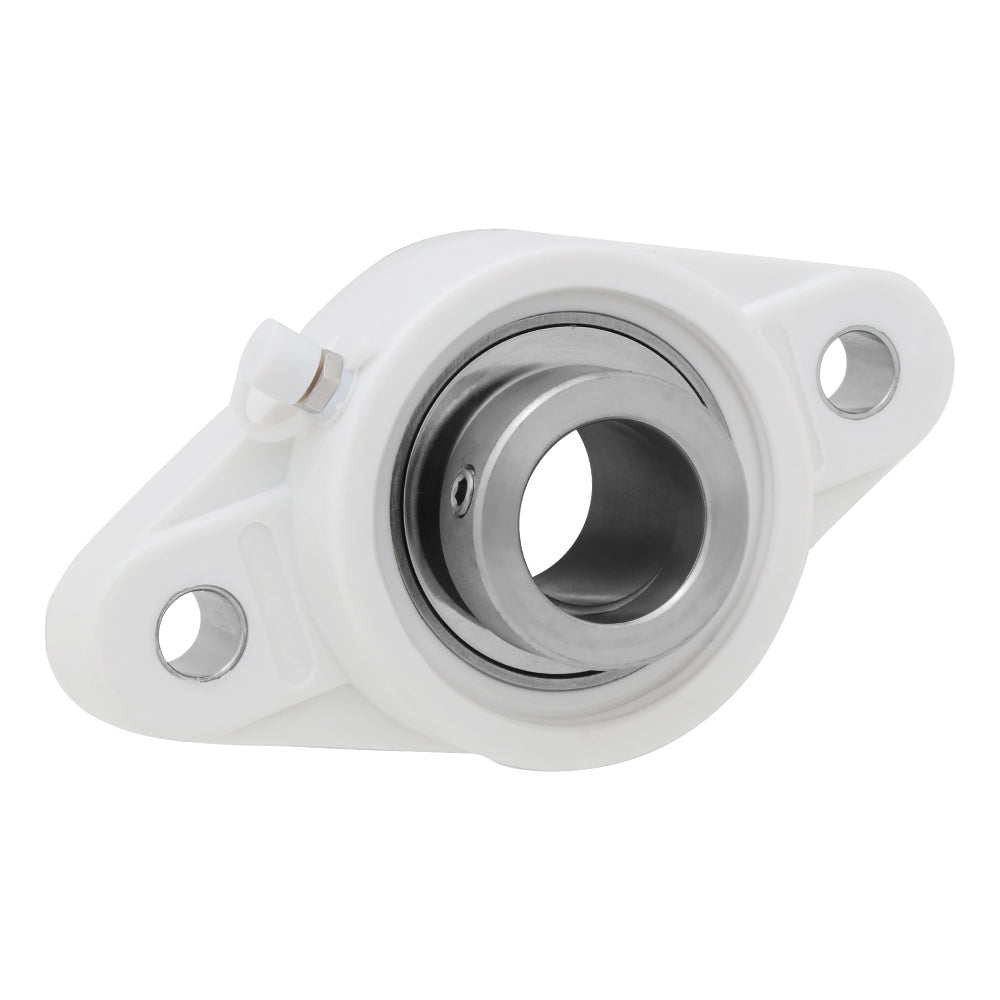

SPHCFL207, Plastic 2-Bolt Flange Mounted Unit Bearing, 1.438 in Bore (ID), Stainless Steel Insert Bearing: SHC207, Housing: PFL207

Out of stock
SKU: SPHCFL207
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$44.25
Product details
  • Part Number SPHCFL207
  • Housing PFL207
  • Insert Bearing SHC207
  • Bore (ID) 1.438 in | 36.513 mm
  • Bolt to Bolt 5.118 in | 130 mm
  • Length 6.339 in | 161 mm
  • Width 3.543 in | 90 mm
  • Height 2.02 in | 51.3 mm
Description

Plastic 2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCFL207
Bore ID 1.438 in | 36.513 mm
Length 6.339 in | 161 mm
Width 3.543 in | 90 mm
Height (Thickness) 2.02 in | 51.3 mm
Bolt to Bolt 5.118 in | 130 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
