QJZ

SPHCFL206-20, Plastic 2-Bolt Flange Mounted Unit Bearing, 1.25 in Bore (ID), Stainless Steel Insert Bearing: SHC206-20, Housing: PFL206

Out of stock
SKU: SPHCFL206-20
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$41.75
Product details
  • Part Number SPHCFL206-20
  • Housing PFL206
  • Insert Bearing SHC206-20
  • Bore (ID) 1.25 in | 31.75 mm
  • Bolt to Bolt 4.606 in | 117 mm
  • Length 5.827 in | 148 mm
  • Width 3.15 in | 80 mm
  • Height 1.894 in | 48.1 mm
Description

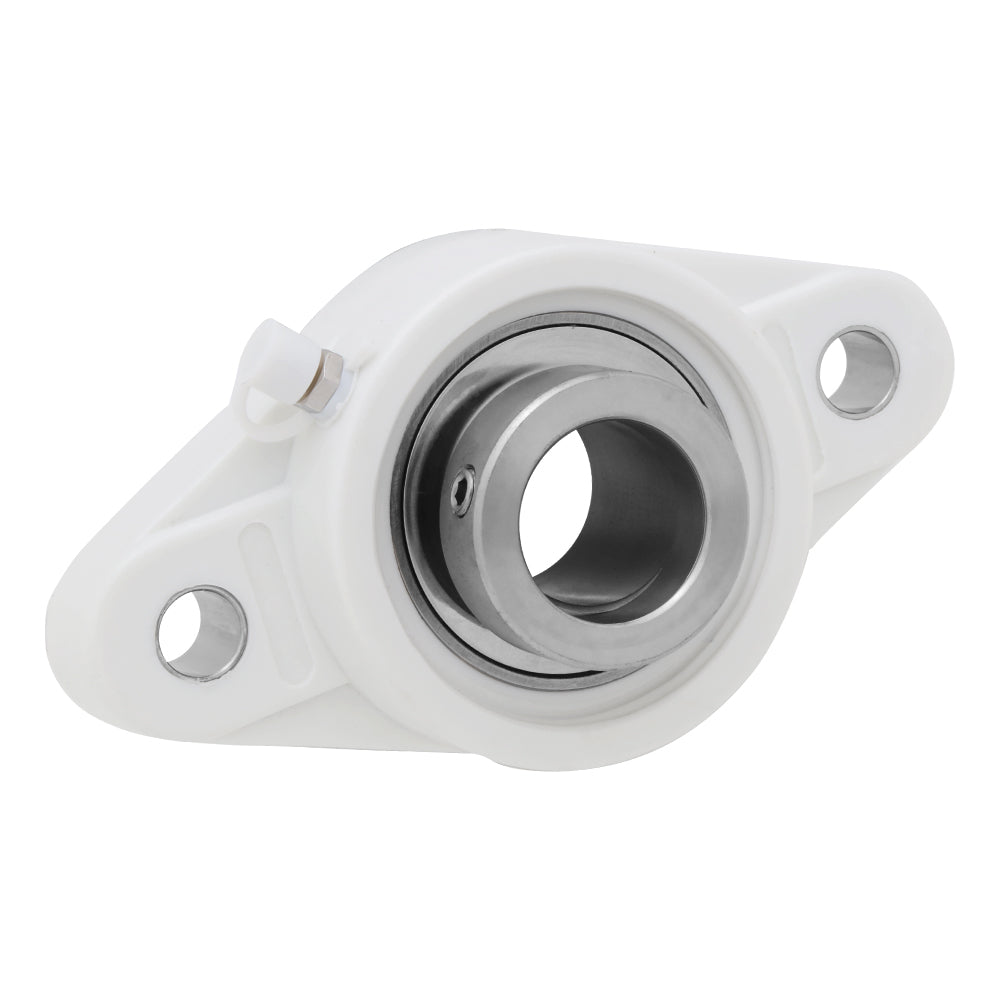

Plastic 2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPHCFL206-20
Bore ID 1.25 in | 31.75 mm
Length 5.827 in | 148 mm
Width 3.15 in | 80 mm
Height (Thickness) 1.894 in | 48.1 mm
Bolt to Bolt 4.606 in | 117 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
