QJZ

SBPFL201, Pressed Steel 2-Bolt Mounted Unit Bearing, 0.472 in Bore (ID), Insert Bearing: SB201, Housing: PFL203 (Pressed Steel)

Out of stock
SKU: SBPFL201
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$8.25
Product details
  • Part Number SBPFL201
  • Housing PFL203 (Pressed Steel)
  • Insert Bearing SB201
  • Bore (ID) 0.472 in | 12 mm
  • Bolt to Bolt 2.5 in | 63.5 mm
  • Length 3.189 in | 81 mm
  • Height 2.323 in | 59 mm
Description

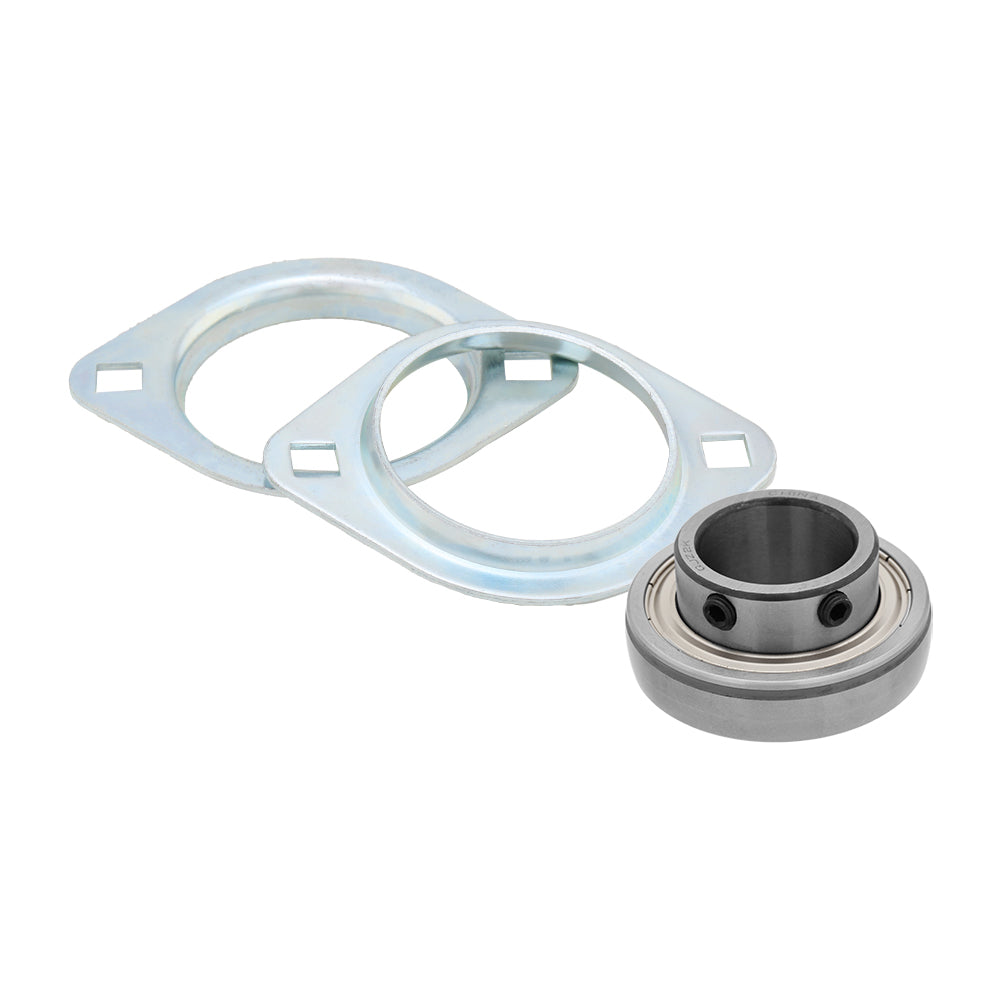

Pressed Steel 2-Bolt Mounted Unit Bearing

The SB Series Pillow Block flangette mounted bearing provide reliable shaft support for machinery and agricultural equipment. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life.

Part Number SBPFL201
Bore ID 0.472 in | 12 mm
Length 3.189 in | 81 mm
Height 2.323 in | 59 mm
Bolt to Bolt 2.5 in | 63.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
