QJZ

SBP208-24G, Pillow Block Mounted Unit Bearing, 1.5 in Bore (ID), Insert Bearing: SB208-24G, Housing: P208

In stock
$20.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SBP208-24G
  • Housing SB208-24G
  • Insert Bearing P208
  • Bore (ID) 1.5 in | 38.1 mm
  • Height 3.858 in | 98 mm
  • Length 7.087 in | 180 mm
  • Bolt to Bolt 5.354 in | 136 mm
Description

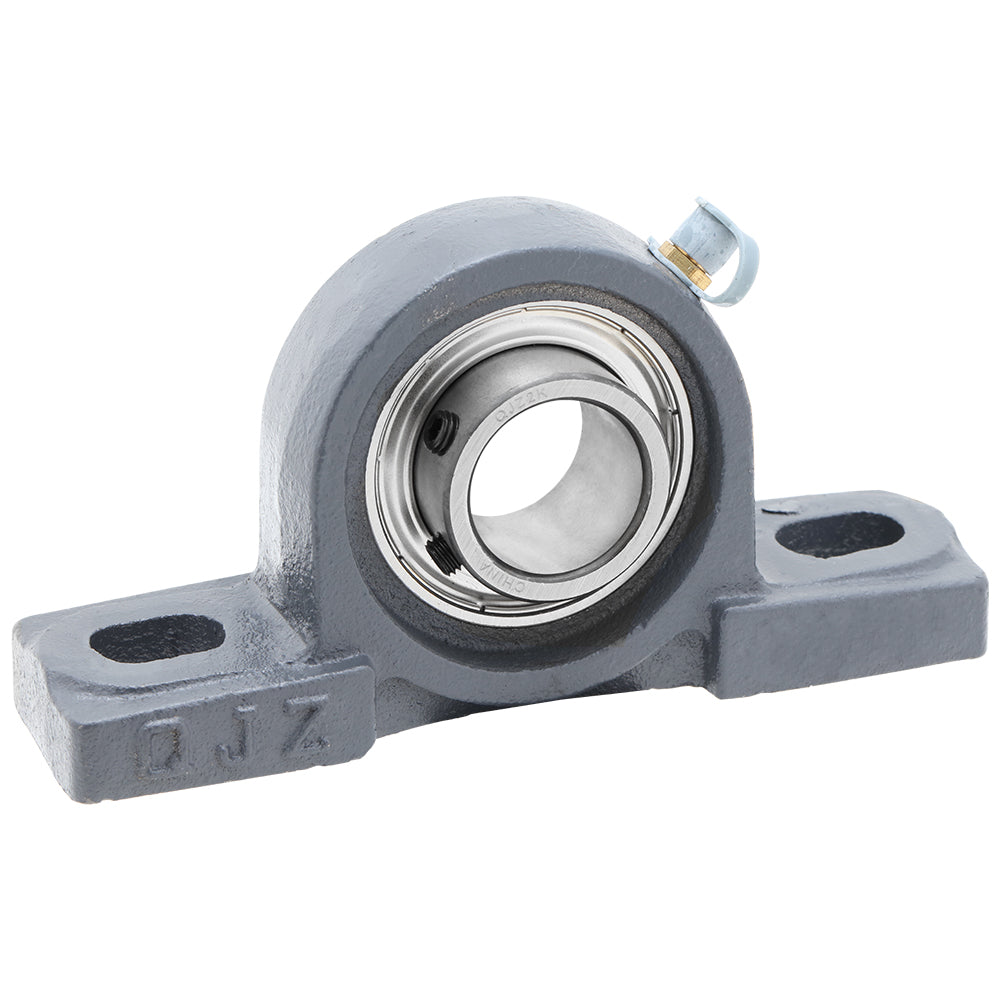

Pillow Block Mounted Unit Bearing

The SB series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.  Includes lubrication hole on the outer surface of the bearing (G).

Model SBP208-24G
Shaft Bore (ID) 1.5 in | 38.1 mm
Length 7.087 in | 180 mm
Height (Thickness) 3.858 in | 98 mm
Width 2.047 in | 52 mm
Bolt to Bolt Spacing 5.354 in | 136 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
