SBP207-22G, Pillow Block Mounted Unit Bearing, 1.375 in Bore (ID), Insert Bearing: SB207-22G, Housing: P207

In stock
$17.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SBP207-22G
  • Housing SB207-22G
  • Insert Bearing P207
  • Bore (ID) 1.375 in | 34.925 mm
  • Height 3.622 in | 92 mm
  • Length 6.575 in | 167 mm
  • Bolt to Bolt 4.961 in | 126 mm
Description

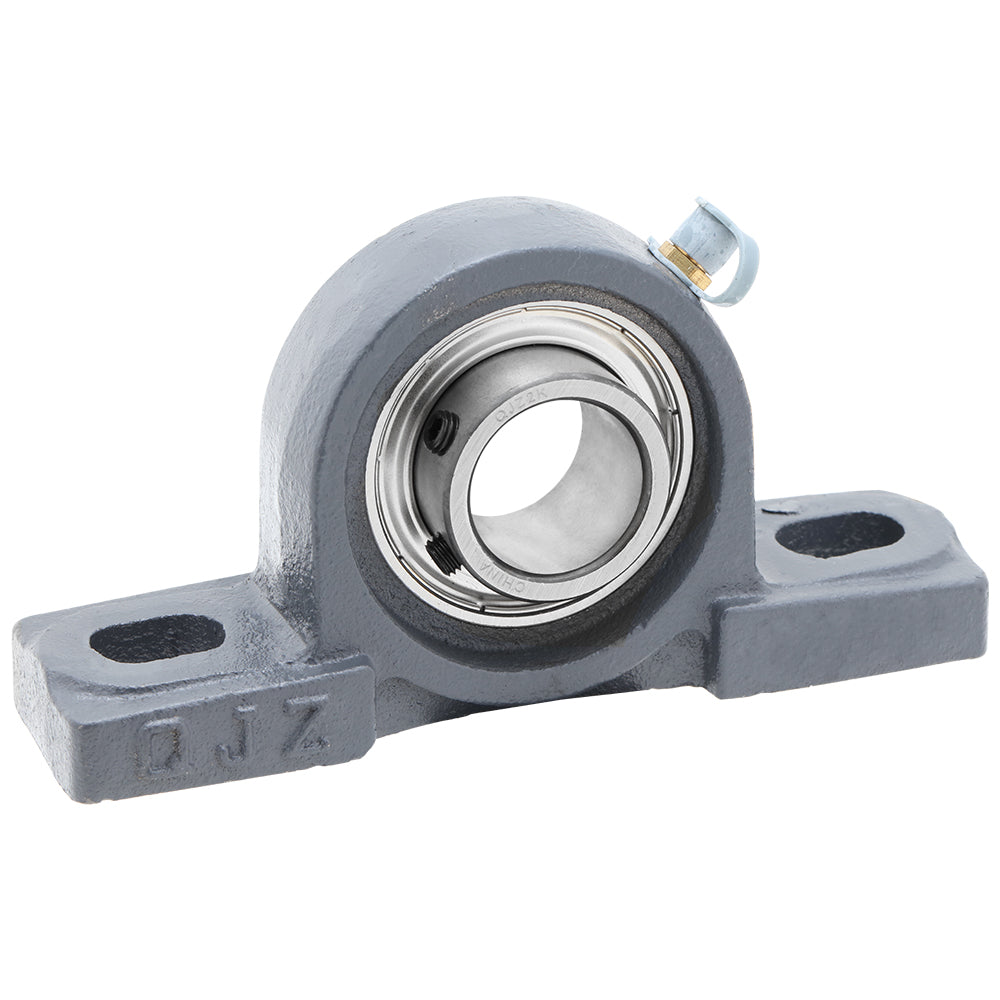

Pillow Block Mounted Unit Bearing

The SB series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.  Includes lubrication hole on the outer surface of the bearing (G).

Model SBP207-22G
Shaft Bore (ID) 1.375 in | 34.925 mm
Length 6.575 in | 167 mm
Height (Thickness) 3.622 in | 92 mm
Width 1.89 in | 48 mm
Bolt to Bolt Spacing 4.961 in | 126 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
