QJZ

SBP206G, Pillow Block Mounted Unit Bearing, 1.181 in Bore (ID), Insert Bearing: SB206G, Housing: P206

Out of stock
$15.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SBP206G
  • Housing SB206G
  • Insert Bearing P206
  • Bore (ID) 1.181 in | 30 mm
  • Height 3.228 in | 82 mm
  • Length 6.299 in | 160 mm
  • Bolt to Bolt 4.764 in | 121 mm
Description

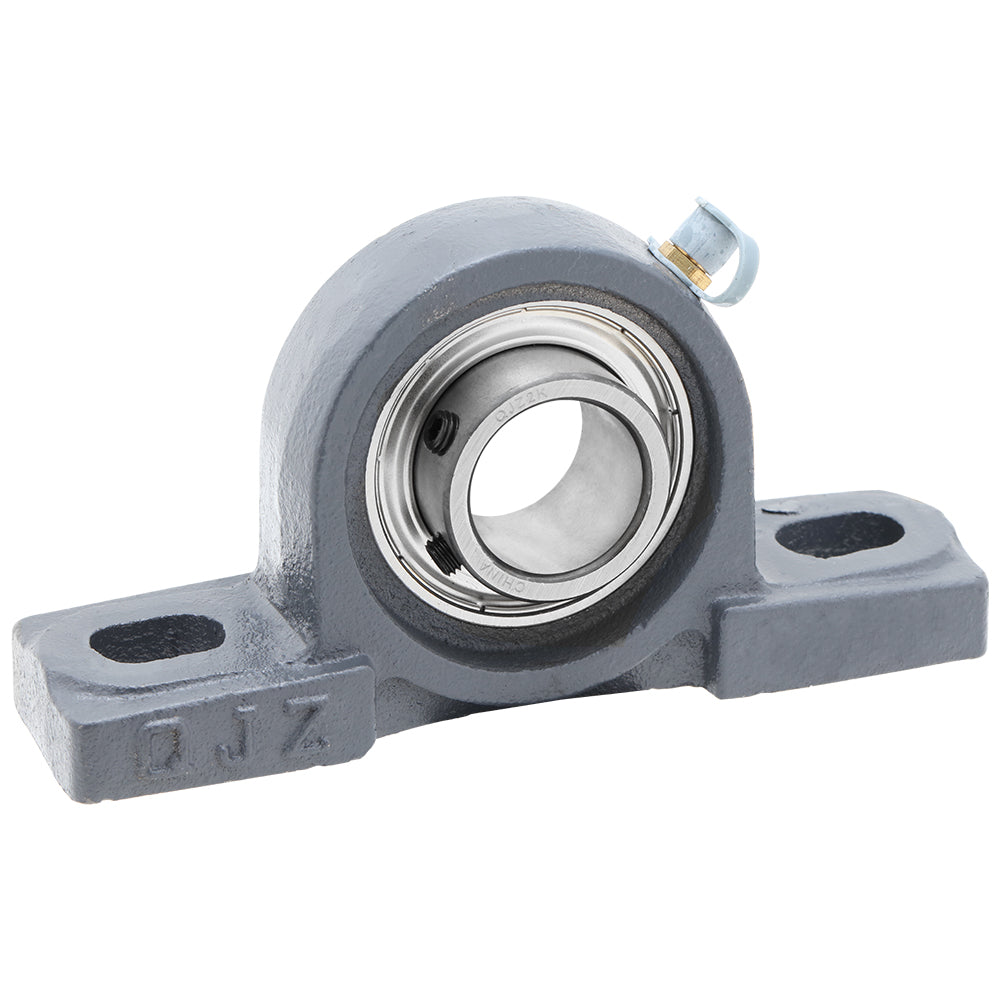

Pillow Block Mounted Unit Bearing

The SB series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.  Includes lubrication hole on the outer surface of the bearing (G).

Model SBP206G
Shaft Bore (ID) 1.181 in | 30 mm
Length 6.299 in | 160 mm
Height (Thickness) 3.228 in | 82 mm
Width 1.732 in | 44 mm
Bolt to Bolt Spacing 4.764 in | 121 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
