SBP205-16G, Pillow Block Mounted Unit Bearing, 1 in Bore (ID), Insert Bearing: SB205-16G, Housing: P205

Out of stock
$12.15
Product details
  • Type Mounted Unit Bearings
  • Part Number SBP205-16G
  • Housing SB205-16G
  • Insert Bearing P205
  • Bore (ID) 1 in | 25.4 mm
  • Height 2.756 in | 70 mm
  • Length 5.512 in | 140 mm
  • Bolt to Bolt 4.134 in | 105 mm
Description

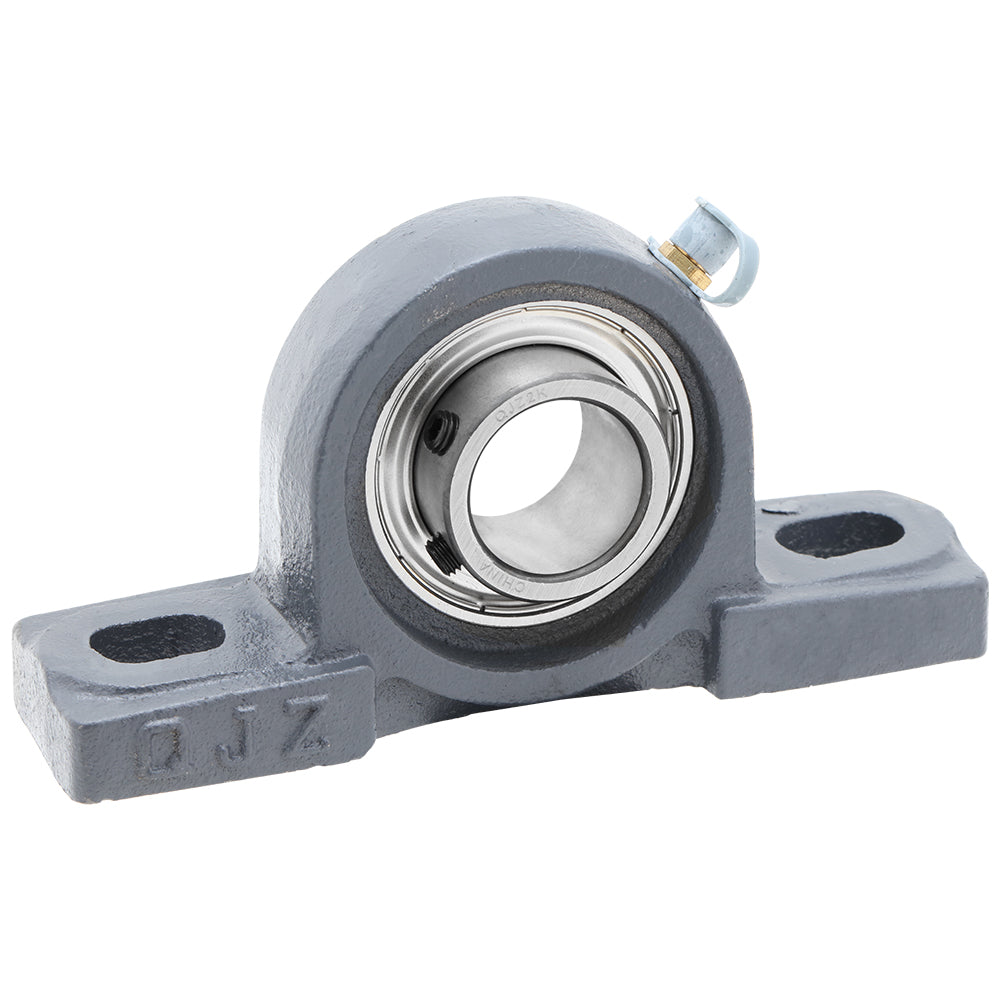

Pillow Block Mounted Unit Bearing

The SB series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.  Includes lubrication hole on the outer surface of the bearing (G).

Model SBP205-16G
Shaft Bore (ID) 1 in | 25.4 mm
Length 5.512 in | 140 mm
Height (Thickness) 2.756 in | 70 mm
Width 1.496 in | 38 mm
Bolt to Bolt Spacing 4.134 in | 105 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
