QJZ

SBP204G, Pillow Block Mounted Unit Bearing, 0.787 in Bore (ID), Insert Bearing: SB204G, Housing: P204

Out of stock
$9.99
Product details
  • Type Mounted Unit Bearings
  • Part Number SBP204G
  • Housing SB204G
  • Insert Bearing P204
  • Bore (ID) 0.787 in | 20 mm
  • Height 2.52 in | 64 mm
  • Length 5 in | 127 mm
  • Bolt to Bolt 3.78 in | 96 mm
Description

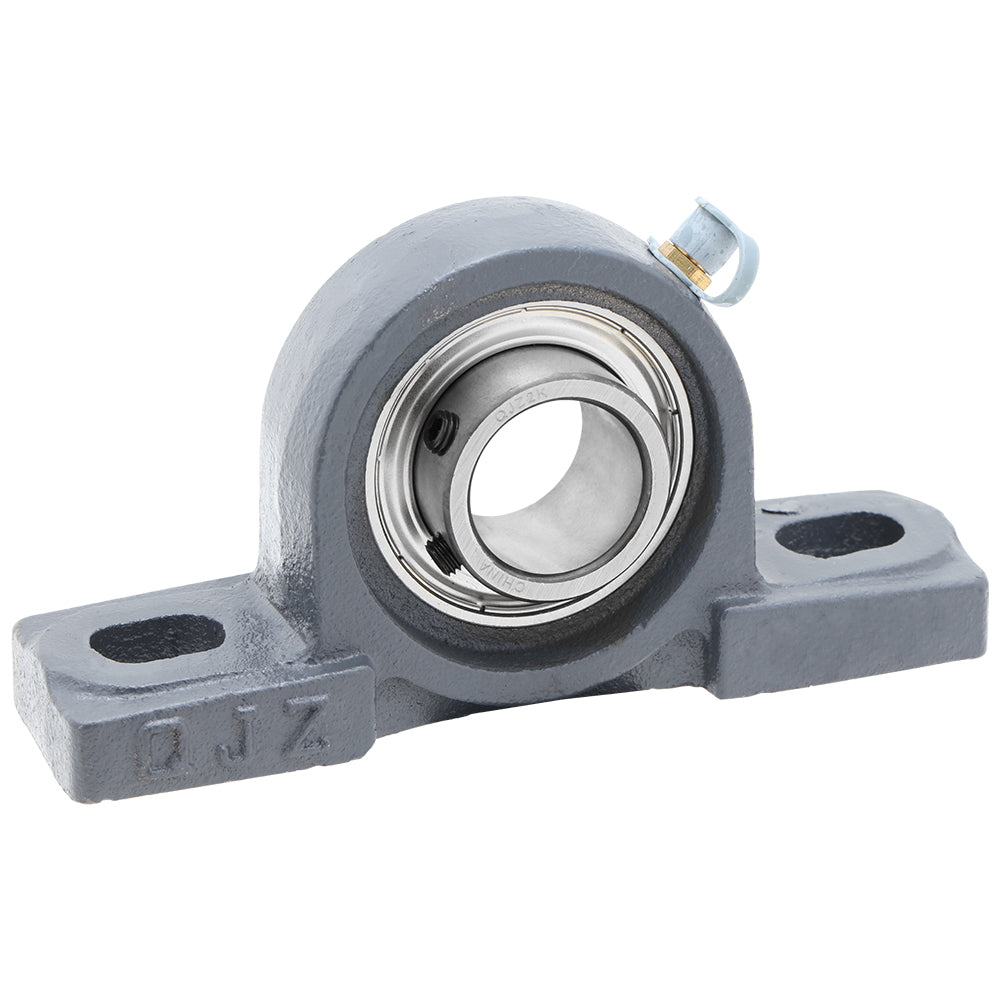

Pillow Block Mounted Unit Bearing

The SB series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.  Includes lubrication hole on the outer surface of the bearing (G).

Model SBP204G
Shaft Bore (ID) 0.787 in | 20 mm
Length 5 in | 127 mm
Height (Thickness) 2.52 in | 64 mm
Width 1.457 in | 37 mm
Bolt to Bolt Spacing 3.78 in | 96 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
