QJZ

SBP203-11G, Pillow Block Mounted Unit Bearing, 0.6875 in Bore (ID), Insert Bearing: SB203-11G, Housing: P202S

Out of stock
$10.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SBP203-11G
  • Housing SB203-11G
  • Insert Bearing P202S
  • Bore (ID) 0.688 in | 17.463 mm
  • Height 2.244 in | 57 mm
  • Length 4.921 in | 125 mm
  • Bolt to Bolt 3.78 in | 96 mm
Description

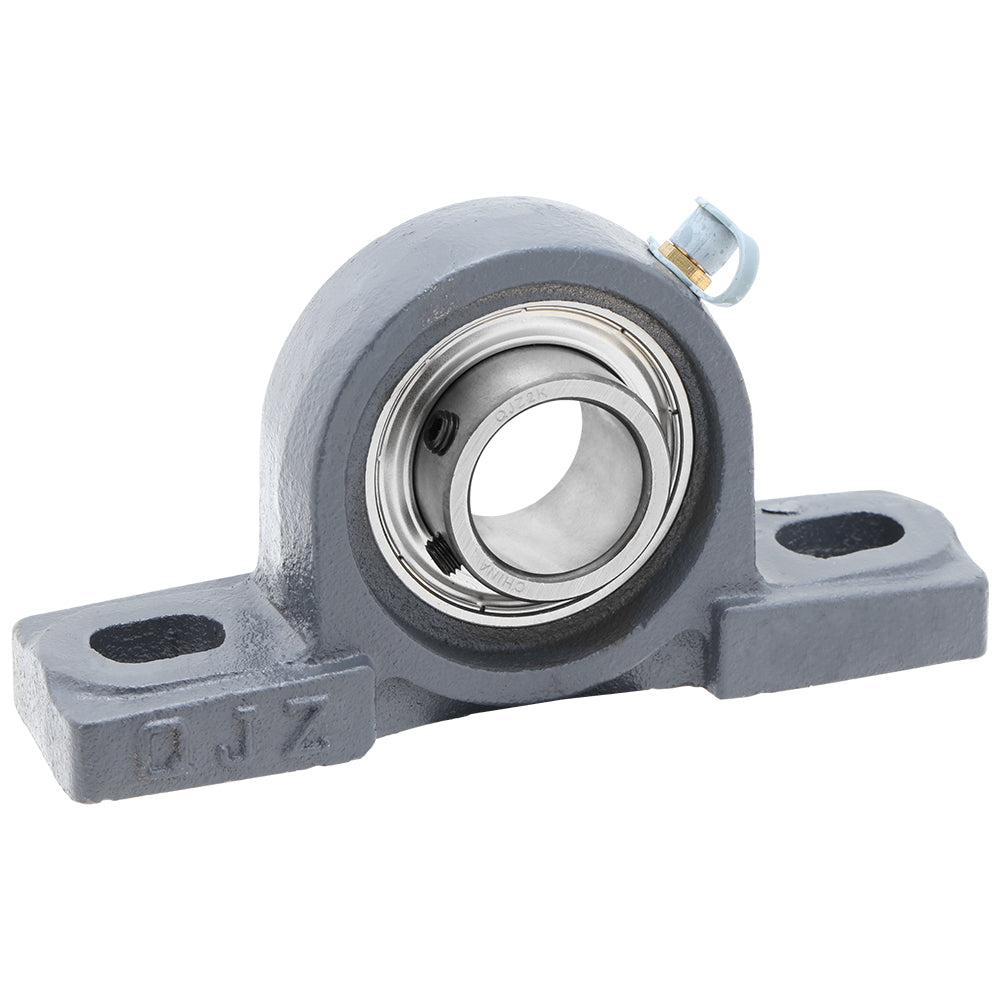

Pillow Block Mounted Unit Bearing

The SB series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.  Includes lubrication hole on the outer surface of the bearing (G).

Model SBP203-11G
Shaft Bore (ID) 0.688 in | 17.463 mm
Length 4.921 in | 125 mm
Height (Thickness) 2.244 in | 57 mm
Width 1.26 in | 32 mm
Bolt to Bolt Spacing 3.78 in | 96 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
