SBFL212-36, 2-Bolt Flange Mounted Unit Bearing, 2.25 in Bore (ID), Insert Bearing: SB212-36, Housing: FL212

Out of stock
SKU: SBFL212-36
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$34.95
Product details
  • Part Number SBFL212-36
  • Housing FL212
  • Insert Bearing SB212-36
  • Bore (ID) 2.25 in | 57.15 mm
  • Bolt to Bolt 7.953 in | 202 mm
  • Length 9.843 in | 250 mm
  • Width 5.512 in | 140 mm
  • Height 2.669 in | 67.8 mm
Description

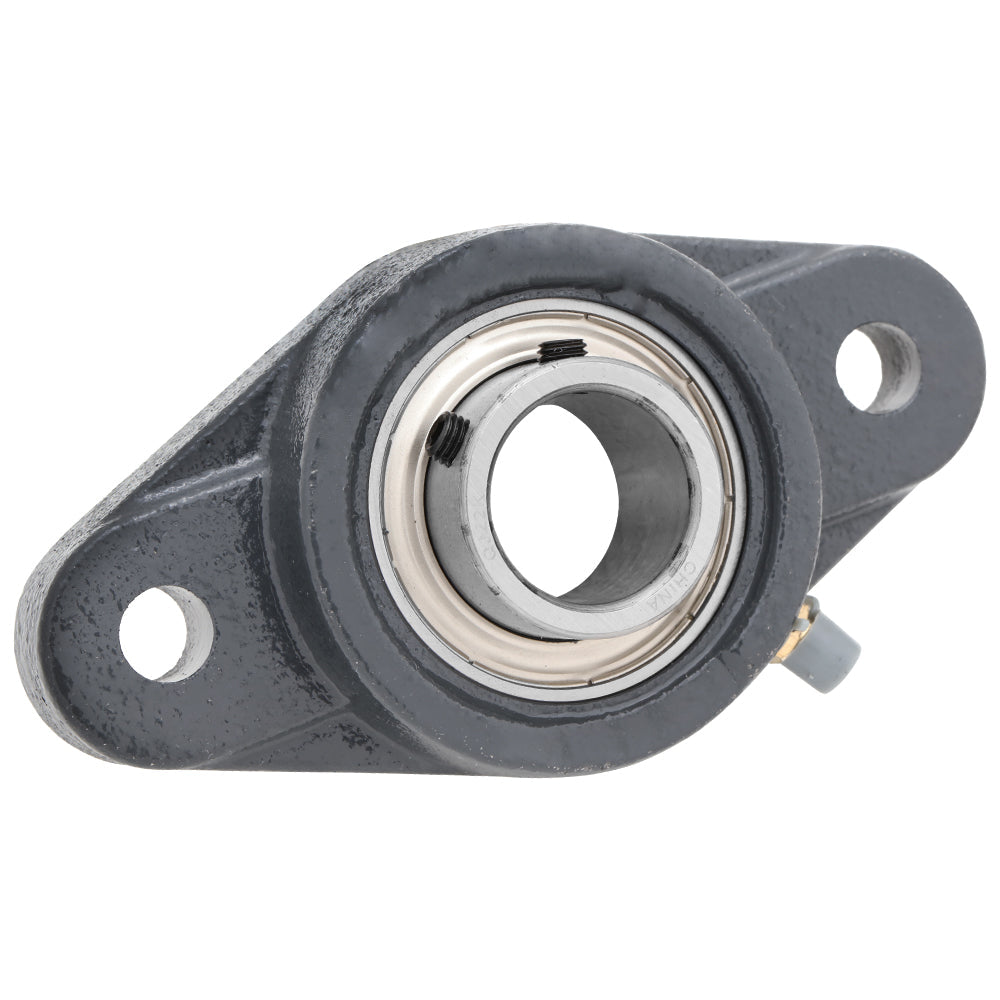

2-Bolt Flange Mounted Unit Ball Bearing

The SB series 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw, designed for easy installation and long-lasting performance.

Model SBFL212-36
Shaft Bore (ID) 2.25 in | 57.15 mm
Length 9.843 in | 250 mm
Width 5.512 in | 140 mm
Height (Thickness) 2.669 in | 67.8 mm
Housing FL212
Insert Bearing SB212-36
Bolt Used | M16 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
