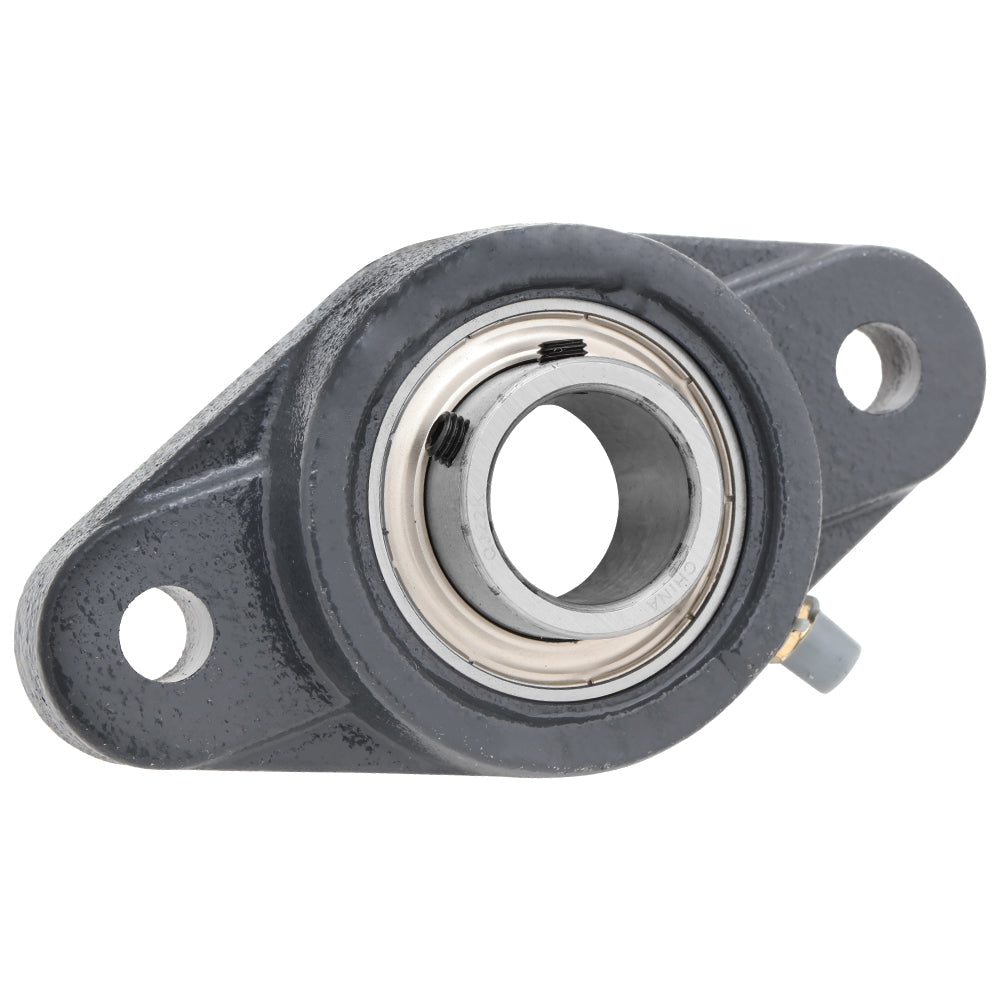

SBFL211-32, 2-Bolt Flange Mounted Unit Bearing, 2 in Bore (ID), Insert Bearing: SB211-32, Housing: FL211

Out of stock
SKU: SBFL211-32
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$29.99
Product details
  • Part Number SBFL211-32
  • Housing FL211
  • Insert Bearing SB211-32
  • Bore (ID) 2 in | 50.8 mm
  • Bolt to Bolt 7.244 in | 184 mm
  • Length 8.819 in | 224 mm
  • Width 5.118 in | 130 mm
  • Height 2.303 in | 58.5 mm
Description

2-Bolt Flange Mounted Unit Ball Bearing

The SB series 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw, designed for easy installation and long-lasting performance.

Model SBFL211-32
Shaft Bore (ID) 2 in | 50.8 mm
Length 8.819 in | 224 mm
Width 5.118 in | 130 mm
Height (Thickness) 2.303 in | 58.5 mm
Housing FL211
Insert Bearing SB211-32
Bolt Used | M16 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
