SBFL210-31, 2-Bolt Flange Mounted Unit Bearing, 1.938 in Bore (ID), Insert Bearing: SB210-31G, Housing: FL210

Out of stock
SKU: SBFL210-31
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$26.50
Product details
  • Part Number SBFL210-31
  • Housing FL210
  • Insert Bearing SB210-31G
  • Bore (ID) 1.938 in | 49.213 mm
  • Bolt to Bolt 6.181 in | 157 mm
  • Length 7.756 in | 197 mm
  • Width 4.528 in | 115 mm
  • Height 2.15 in | 54.6 mm
Description

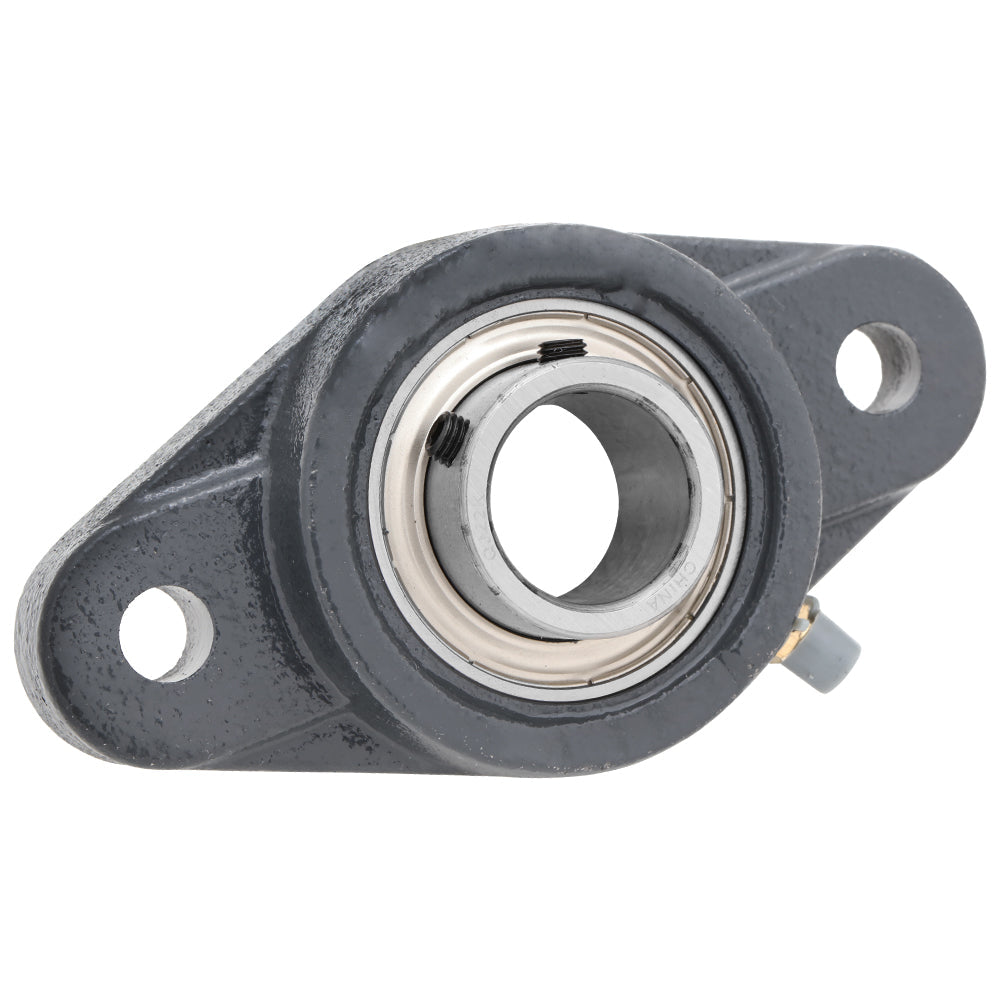

2-Bolt Flange Mounted Unit Ball Bearing

The SB series 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw, designed for easy installation and long-lasting performance.

Model SBFL210-31
Shaft Bore (ID) 1.938 in | 49.213 mm
Length 7.756 in | 197 mm
Width 4.528 in | 115 mm
Height (Thickness) 2.15 in | 54.6 mm
Housing FL210
Insert Bearing SB210-31G
Bolt Used | M16 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
