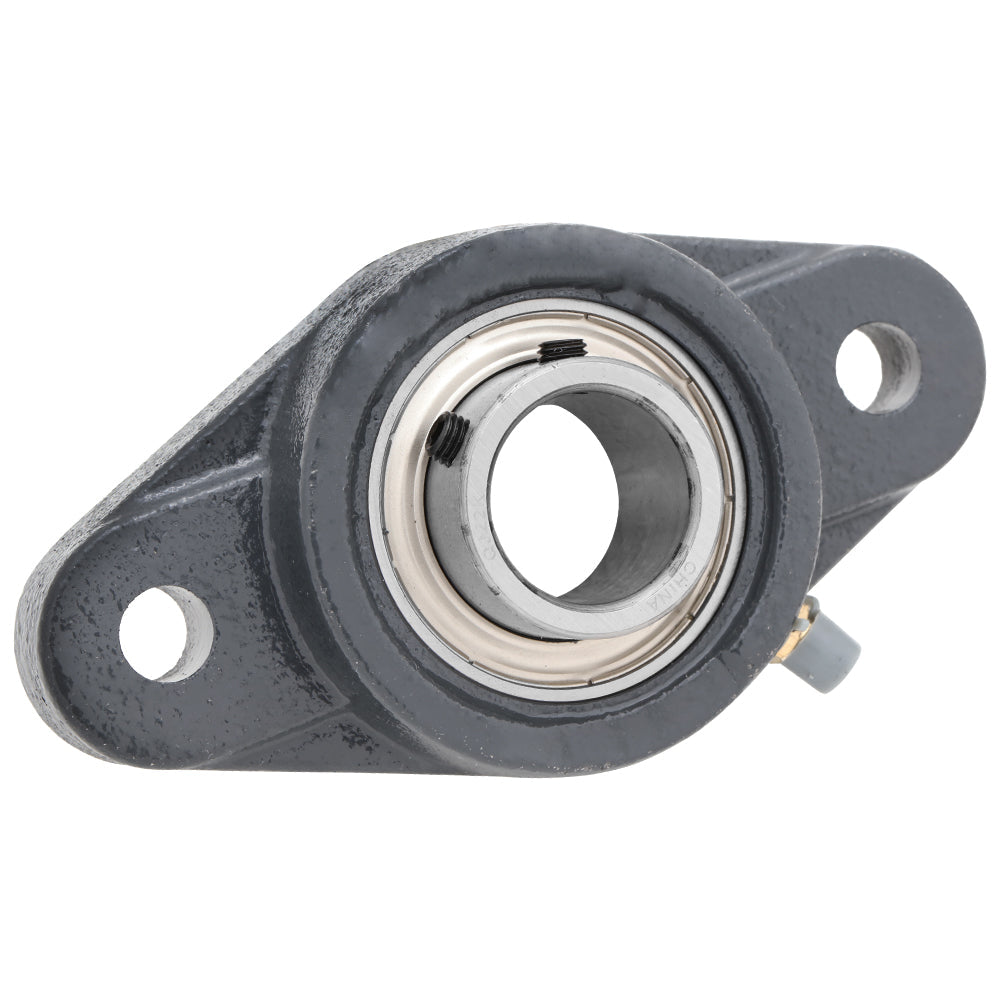

SBFL208, 2-Bolt Flange Mounted Unit Bearing, 1.575 in Bore (ID), Insert Bearing: SB208G, Housing: FL208

Out of stock
SKU: SBFL208
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$19.25
Product details
  • Part Number SBFL208
  • Housing FL208
  • Insert Bearing SB208G
  • Bore (ID) 1.575 in | 40 mm
  • Bolt to Bolt 5.669 in | 144 mm
  • Length 6.89 in | 175 mm
  • Width 3.937 in | 100 mm
  • Height 1.811 in | 46 mm
Description

2-Bolt Flange Mounted Unit Ball Bearing

The SB series 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw, designed for easy installation and long-lasting performance.

Model SBFL208
Shaft Bore (ID) 1.575 in | 40 mm
Length 6.89 in | 175 mm
Width 3.937 in | 100 mm
Height (Thickness) 1.811 in | 46 mm
Housing FL208
Insert Bearing SB208G
Bolt Used | M12 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
