SBFL207-23G, 2-Bolt Flange Mounted Unit Bearing, 1.438 in Bore (ID), Insert Bearing: SB207-23G, Housing: FL207

In stock
SKU: SBFL207-23G
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$18.25
Product details
  • Part Number SBFL207-23G
  • Housing FL207
  • Insert Bearing SB207-23G
  • Bore (ID) 1.438 in | 36.513 mm
  • Bolt to Bolt 5.118 in | 130 mm
  • Length 6.339 in | 161 mm
  • Width 3.543 in | 90 mm
  • Height 1.673 in | 42.5 mm
Description

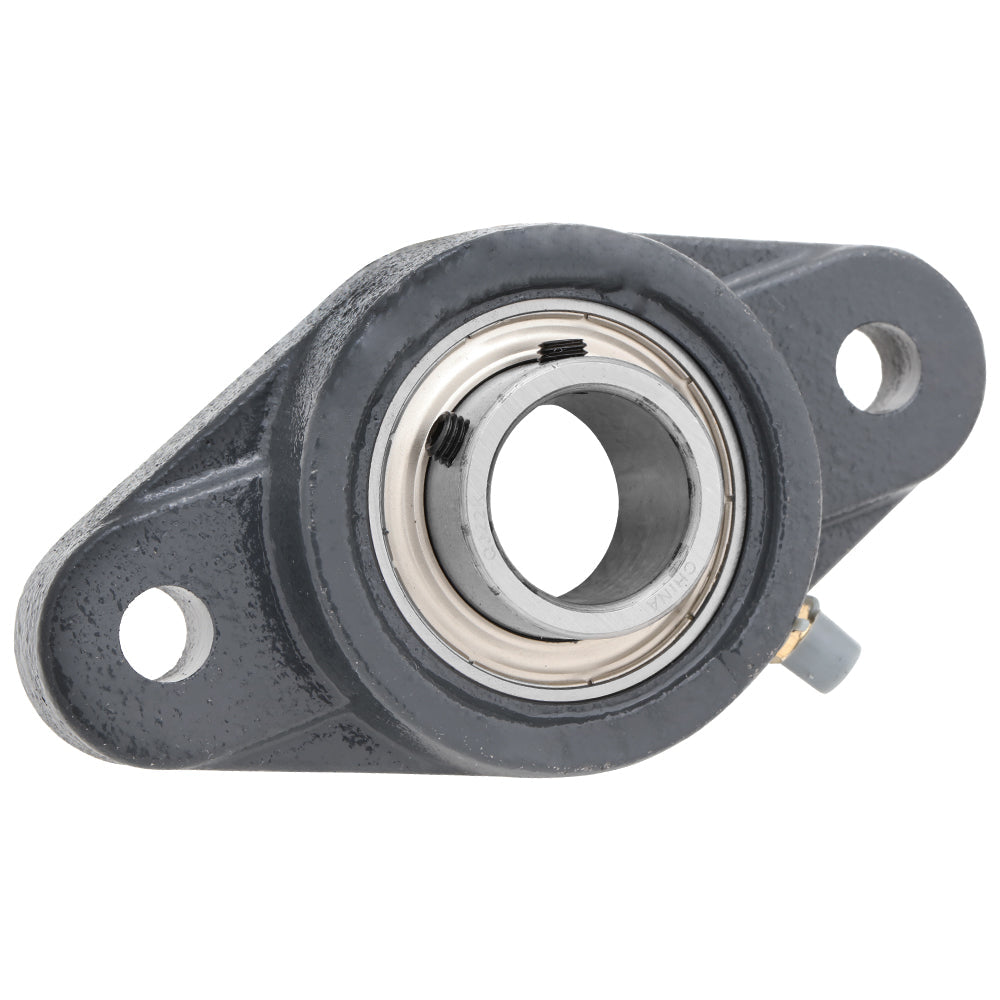

2-Bolt Flange Mounted Unit Ball Bearing

The SB series 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw, designed for easy installation and long-lasting performance.

Model SBFL207-23G
Shaft Bore (ID) 1.438 in | 36.513 mm
Length 6.339 in | 161 mm
Width 3.543 in | 90 mm
Height (Thickness) 1.673 in | 42.5 mm
Housing FL207
Insert Bearing SB207-23G
Bolt Used | M12 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
