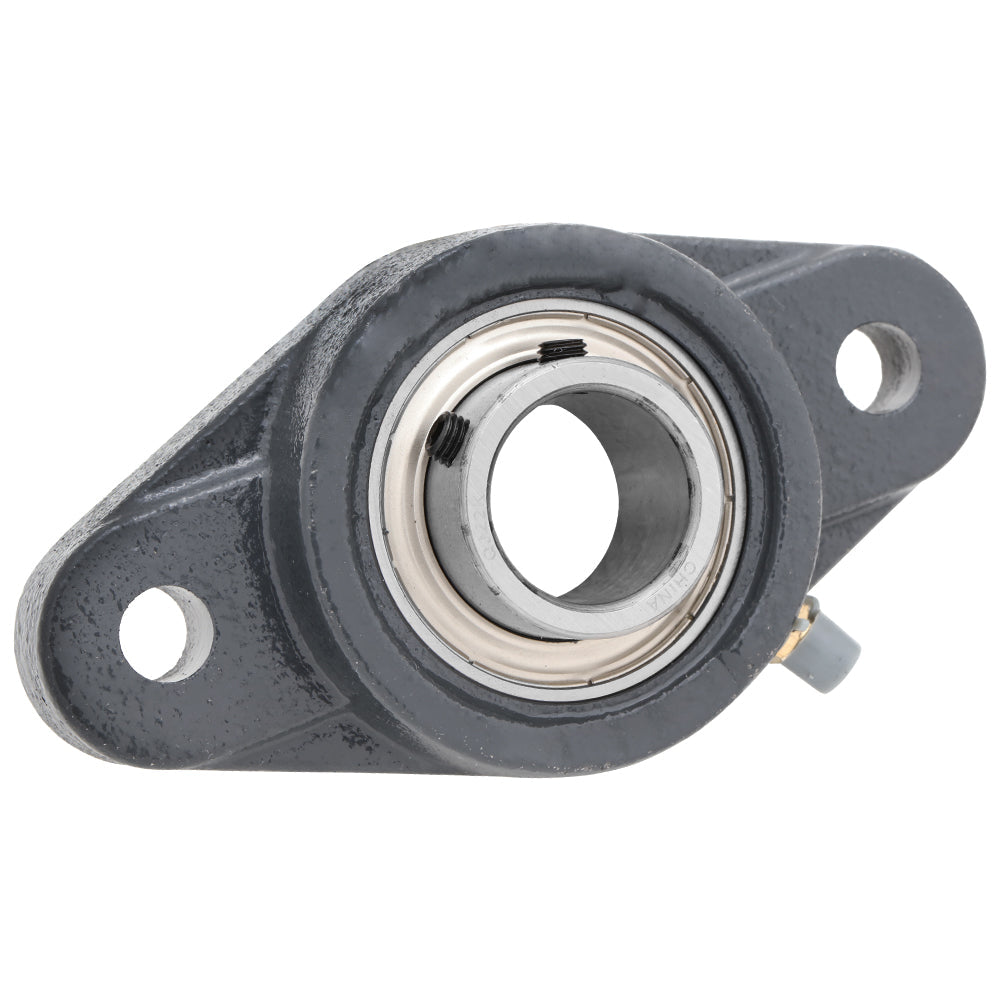

SBFL207-22, 2-Bolt Flange Mounted Unit Bearing, 1.375 in Bore (ID), Insert Bearing: SB207-22, Housing: FL207

In stock
SKU: SBFL207-22
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$15.95
Product details
  • Part Number SBFL207-22
  • Housing FL207
  • Insert Bearing SB207-22
  • Bore (ID) 1.375 in | 34.925 mm
  • Bolt to Bolt 5.118 in | 130 mm
  • Length 6.339 in | 161 mm
  • Width 3.543 in | 90 mm
  • Height 1.673 in | 42.5 mm
Description

2-Bolt Flange Mounted Unit Ball Bearing

The SB series 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw, designed for easy installation and long-lasting performance.

Model SBFL207-22
Shaft Bore (ID) 1.375 in | 34.925 mm
Length 6.339 in | 161 mm
Width 3.543 in | 90 mm
Height (Thickness) 1.673 in | 42.5 mm
Housing FL207
Insert Bearing SB207-22
Bolt Used | M12 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
