QJZ

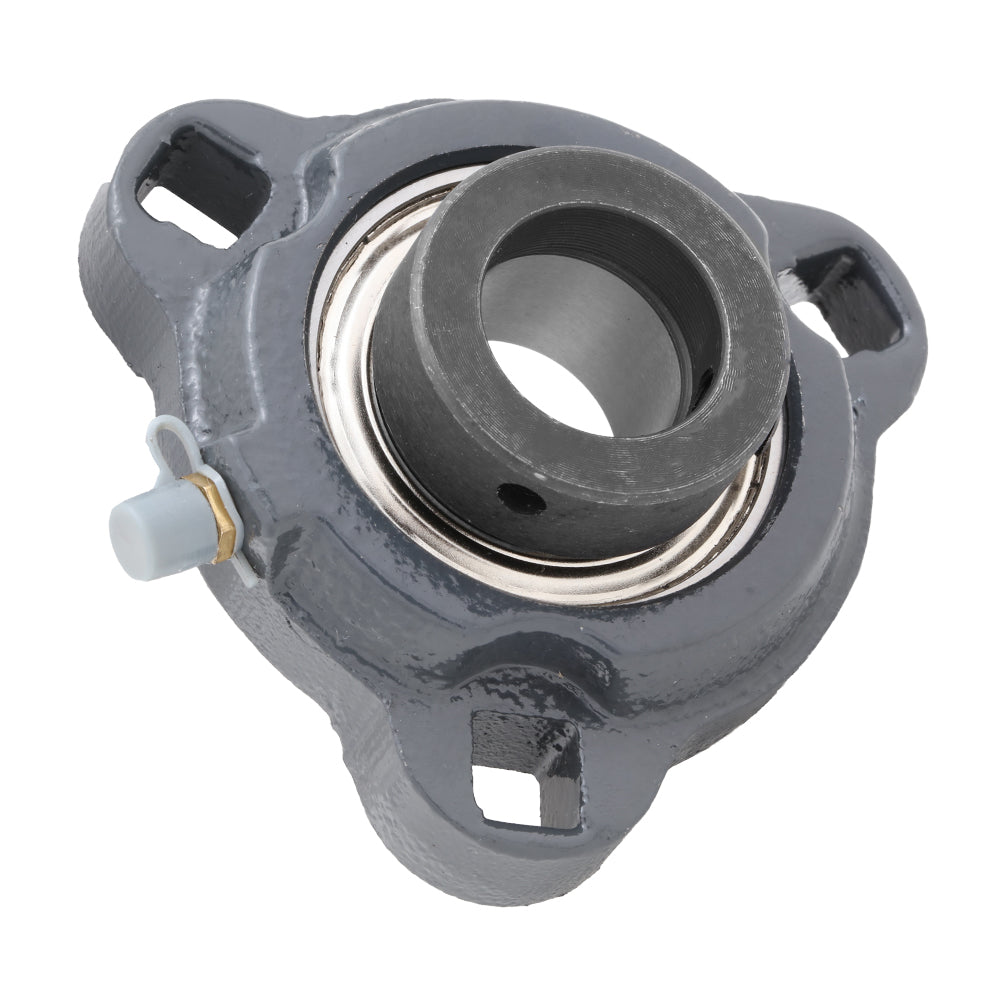

SATRD207-22G, 3-Bolt Flange Mounted Unit Bearing, 1.375 in Bore (ID), Insert Bearing: SA207-22G, Housing: TRD207, with Locking Collar

In stock
SKU: SATRD207-22G
Material and bore size can be selected below. Dimensions (Length × Width × Height) remain the same for all options.
$22.50
Product details
  • Part Number SATRD207-22G
  • Insert Bearing SA207-22G
  • Housing TRD207
  • Bore (ID) 1.375 in | 34.925 mm
  • Length 4.823 in | 122.5 mm
  • Height 1.657 in | 42.1 mm
  • Bolt Circle Diameter 3.937 in | 100 mm
  • Center to Edge 2.406 in | 61.1 mm

Please contact us if you are unsure about the fitment.

Description

3-Bolt Flange Mounted Unit Ball Bearing: SATRD207-22G

The SA series 3-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA207-22G) and a cast iron housing (TRD207) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SATRD207-22G
Shaft Bore (ID) 1.375 in | 34.925 mm
Length 4.823 in | 122.5 mm
Height 1.657 in | 42.1 mm
Bolt Circle 3.937 in | 100 mm
Center to Edge 2.406 in | 61.1 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
