QJZ

SATRD206, 3-Bolt Flange Mounted Unit Bearing, 1.181 in Bore (ID), Insert Bearing: SA206, Housing: TRD206

In stock
SKU: SATRD206
Material and bore size can be selected below. Dimensions (Length × Width × Height) remain the same for all options.
$19.99
Product details
  • Part Number SATRD206
  • Insert Bearing SA206
  • Housing TRD206
  • Bore (ID) 1.181 in | 30 mm
  • Length 4.567 in | 116 mm
  • Height 1.567 in | 39.8 mm
  • Bolt Circle Diameter 3.563 in | 90.5 mm
  • Center to Edge 2.28 in | 57.9 mm

Please contact us if you are unsure about the fitment.

Description

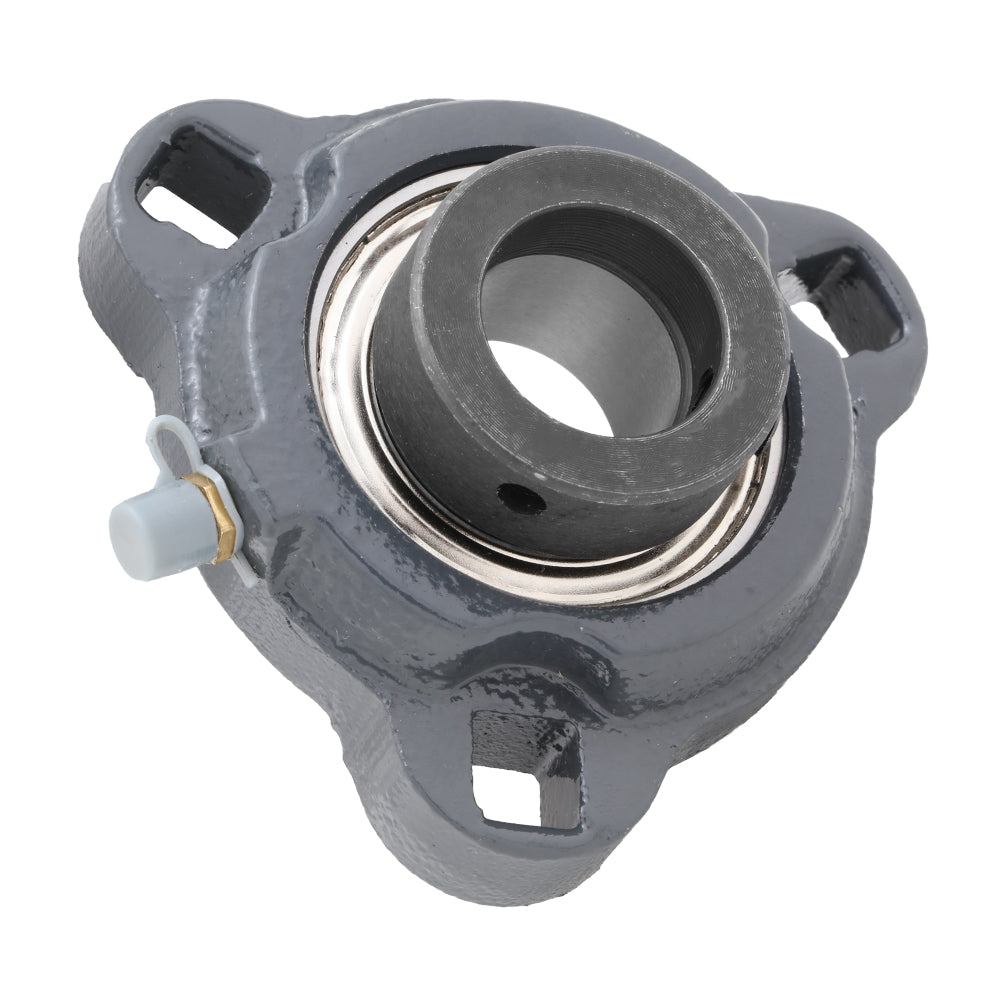

3-Bolt Flange Mounted Unit Ball Bearing: SATRD206

The SA series 3-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA206) and a cast iron housing (TRD206) with a locking collar, designed for easy installation and long-lasting performance.

Model SATRD206
Shaft Bore (ID) 1.181 in | 30 mm
Length 4.567 in | 116 mm
Height 1.567 in | 39.8 mm
Bolt Circle 3.563 in | 90.5 mm
Center to Edge 2.28 in | 57.9 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
