SATRD205-14G, 3-Bolt Flange Mounted Unit Bearing, 0.875 in Bore (ID), Insert Bearing: SA205-14G, Housing: TRD205, with Locking Collar

In stock
SKU: SATRD205-14G
Material and bore size can be selected below. Dimensions (Length × Width × Height) remain the same for all options.
$13.75
Product details
  • Part Number SATRD205-14G
  • Insert Bearing SA205-14G
  • Housing TRD205
  • Bore (ID) 0.875 in | 22.225 mm
  • Length 3.748 in | 95.2 mm
  • Height 1.406 in | 35.7 mm
  • Bolt Circle Diameter 3 in | 76.2 mm
  • Center to Edge 1.874 in | 47.6 mm

Please contact us if you are unsure about the fitment.

Description

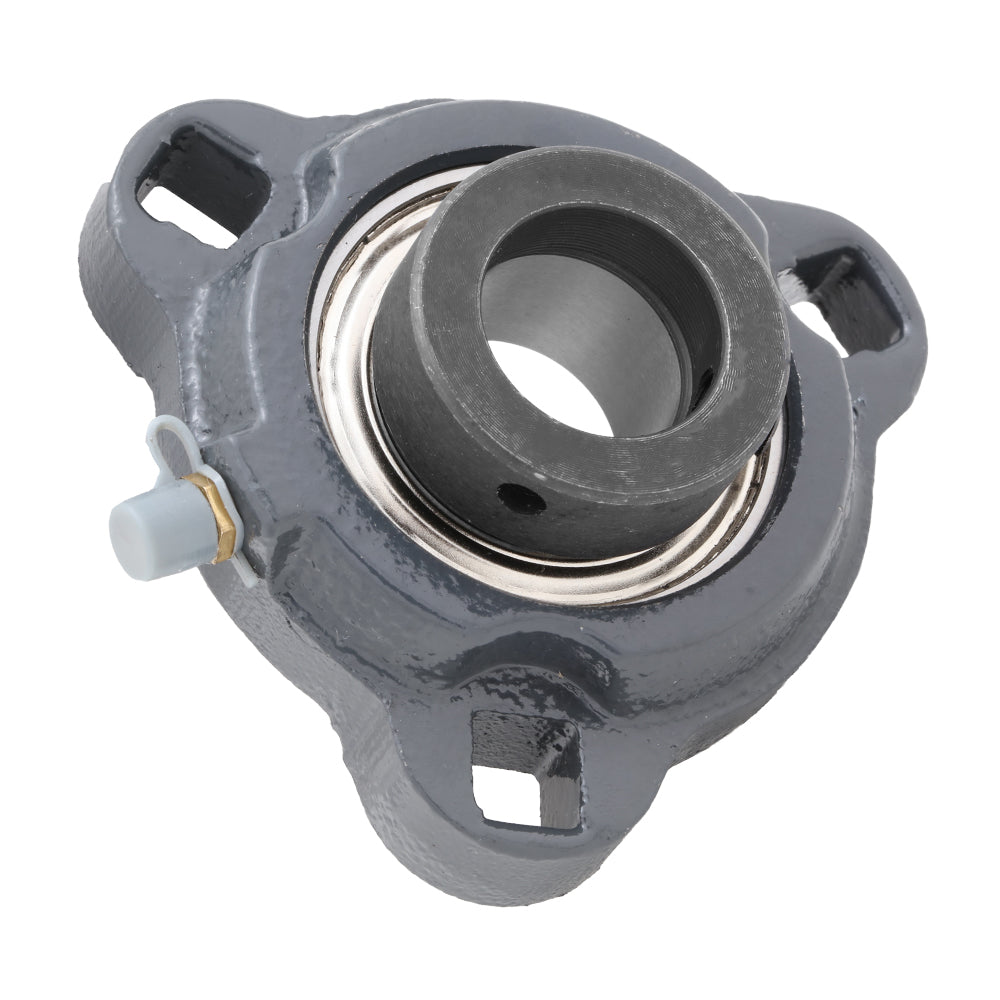

3-Bolt Flange Mounted Unit Ball Bearing: SATRD205-14G

The SA series 3-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA205-14G) and a cast iron housing (TRD205) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SATRD205-14G
Shaft Bore (ID) 0.875 in | 22.225 mm
Length 3.748 in | 95.2 mm
Height 1.406 in | 35.7 mm
Bolt Circle 3 in | 76.2 mm
Center to Edge 1.874 in | 47.6 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
