SATRD204, 3-Bolt Flange Mounted Unit Bearing, 0.787 in Bore (ID), Insert Bearing: SA204, Housing: TRD204

Out of stock
SKU: SATRD204
Material and bore size can be selected below. Dimensions (Length × Width × Height) remain the same for all options.
$14.25
Product details
  • Part Number SATRD204
  • Insert Bearing SA204
  • Housing TRD204
  • Bore (ID) 0.787 in | 20 mm
  • Length 3.563 in | 90.5 mm
  • Height 1.358 in | 34.5 mm
  • Bolt Circle Diameter 2.811 in | 71.4 mm
  • Center to Edge 1.78 in | 45.2 mm

Please contact us if you are unsure about the fitment.

Description

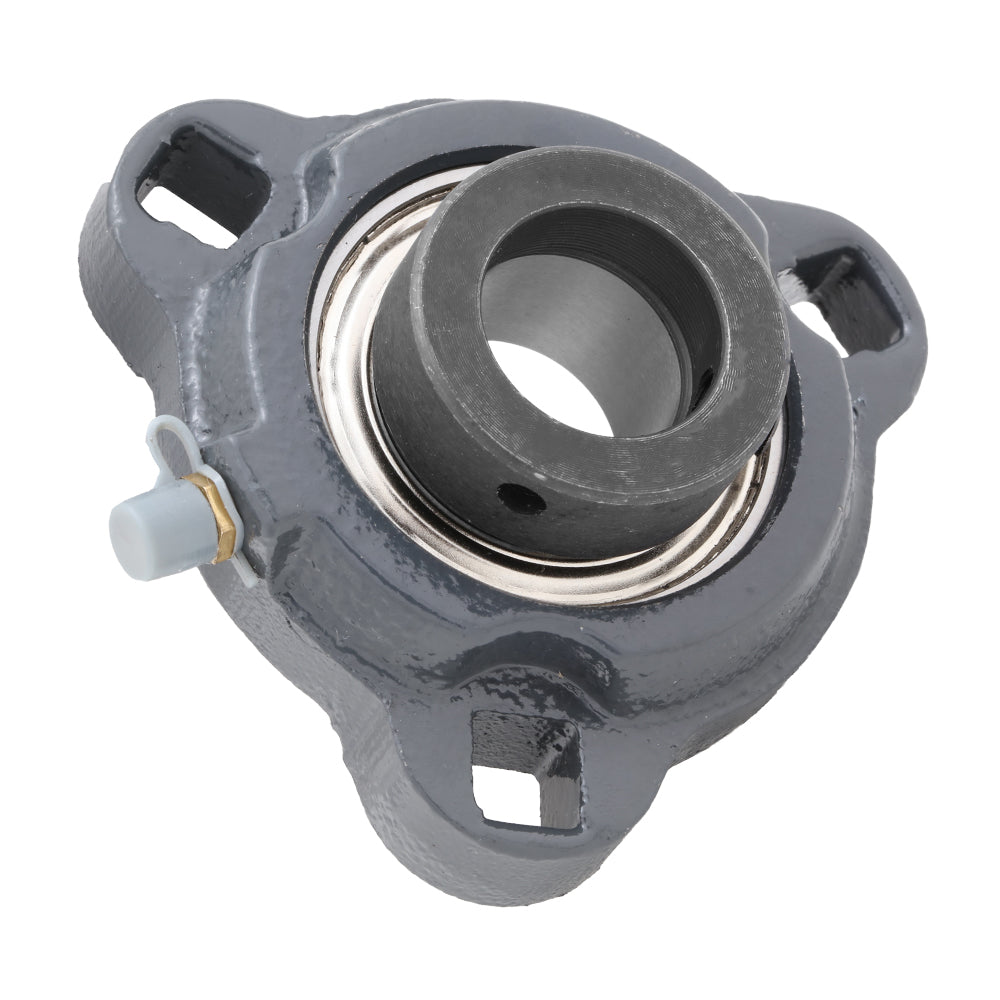

3-Bolt Flange Mounted Unit Ball Bearing: SATRD204

The SA series 3-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA204) and a cast iron housing (TRD204) with a locking collar, designed for easy installation and long-lasting performance.

Model SATRD204
Shaft Bore (ID) 0.787 in | 20 mm
Length 3.563 in | 90.5 mm
Height 1.358 in | 34.5 mm
Bolt Circle 2.811 in | 71.4 mm
Center to Edge 1.78 in | 45.2 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
