QJZ

SATRD202-10, 3-Bolt Flange Mounted Unit Bearing, 0.625 in Bore (ID), Insert Bearing: SA202-10, Housing: TRD203

Out of stock
SKU: SATRD202-10
Material and bore size can be selected below. Dimensions (Length × Width × Height) remain the same for all options.
$14.75
Product details
  • Part Number SATRD202-10
  • Insert Bearing SA202-10
  • Housing TRD203
  • Bore (ID) 0.625 in | 15.875 mm
  • Length 3.189 in | 81 mm
  • Height 1.291 in | 32.8 mm
  • Bolt Circle Diameter 2.5 in | 63.5 mm
  • Center to Edge 1.594 in | 40.5 mm

Please contact us if you are unsure about the fitment.

Description

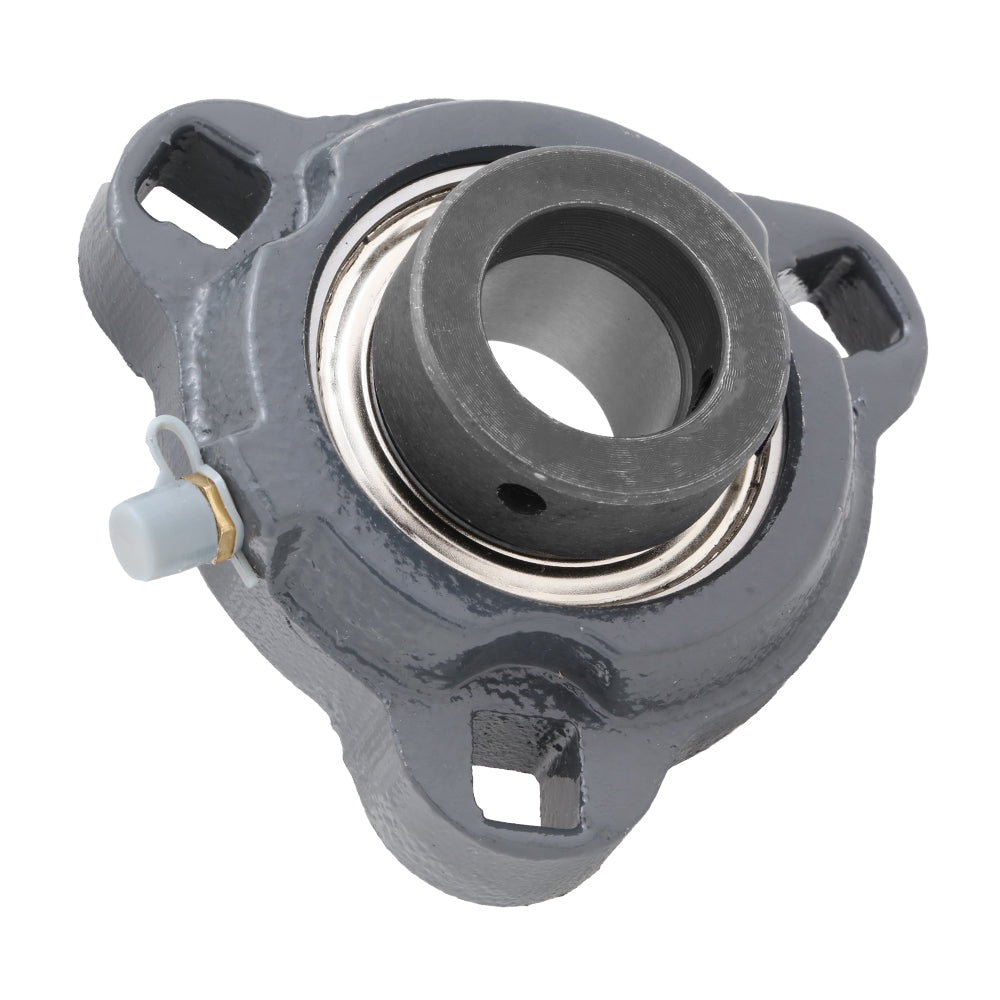

3-Bolt Flange Mounted Unit Ball Bearing: SATRD202-10

The SA series 3-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA202-10) and a cast iron housing (TRD203) with a locking collar, designed for easy installation and long-lasting performance.

Model SATRD202-10
Shaft Bore (ID) 0.625 in | 15.875 mm
Length 3.189 in | 81 mm
Height 1.291 in | 32.8 mm
Bolt Circle 2.5 in | 63.5 mm
Center to Edge 1.594 in | 40.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
