QJZ

SATB210, Tapped Based Pillow Block Mounted Unit Bearing, 1.969 in Bore (ID), Insert Bearing: SA210, Housing: TB210, with Locking Collar

Out of stock
$48.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SATB210
  • Housing TB210
  • Insert Bearing SA210
  • Bore (ID) 1.969 in | 50 mm
  • Height 4.626 in | 117.5 mm
  • Length 5.5 in | 139.7 mm
  • Bolt to Bolt 4 in | 101.6 mm
Description

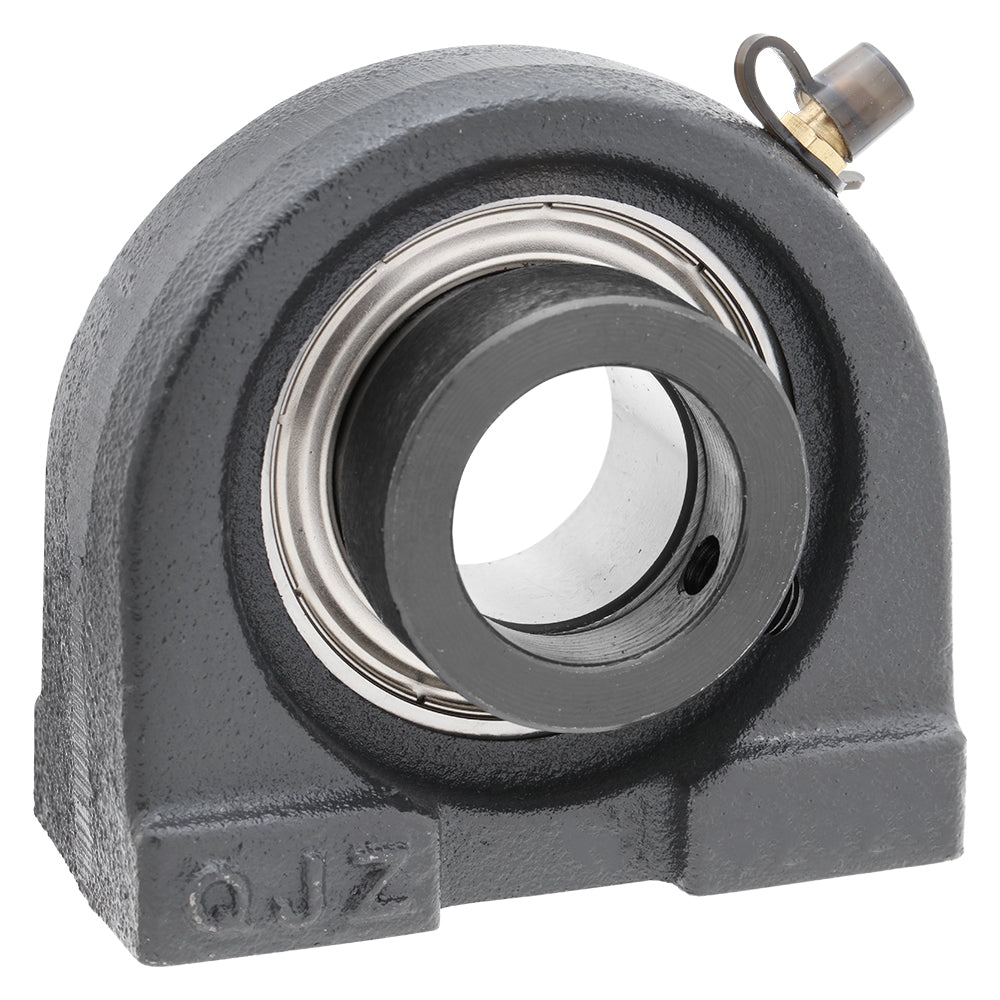

Tapped Based Pillow Block Mounted Unit Ball Bearing: SATB210

The SA series Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA210) and a cast iron housing (TB210) with a locking collar, designed for easy installation and long-lasting performance.

Model SATB210
Shaft Bore (ID) 1.969 in | 50 mm
Length 5.5 in | 139.7 mm
Width 2 in | 50.8 mm
Height (Thickness) 4.626 in | 117.5 mm
Bolt to Bolt Spacing 4 in | 101.6 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
