QJZ

SATB209-28, Tapped Based Pillow Block Mounted Unit Bearing, 1 3/4 in Bore (ID), Insert Bearing: SA209-28, Housing: TB209, with Locking Collar

In stock
$37.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SATB209-28
  • Housing TB209
  • Insert Bearing SA209-28
  • Bore (ID) 1.75 in | 44.45 mm
  • Height 4.248 in | 107.9 mm
  • Length 5 in | 127 mm
  • Bolt to Bolt 3.752 in | 95.3 mm
Description

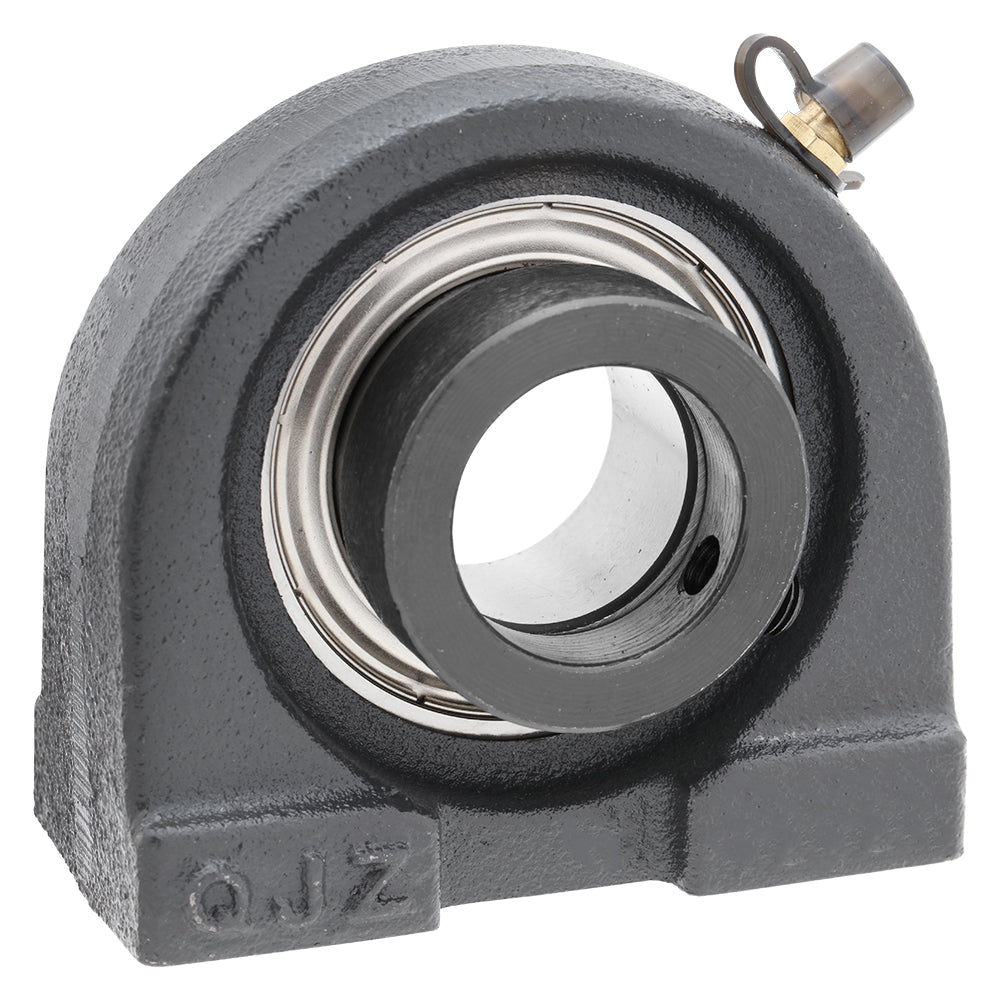

Tapped Based Pillow Block Mounted Unit Ball Bearing: SATB209-28

The SA series Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA209-28) and a cast iron housing (TB209) with a locking collar, designed for easy installation and long-lasting performance.

Model SATB209-28
Shaft Bore (ID) 1.75 in | 44.45 mm
Length 5 in | 127 mm
Width 2 in | 50.8 mm
Height (Thickness) 4.248 in | 107.9 mm
Bolt to Bolt Spacing 3.752 in | 95.3 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
