QJZ

SATB208, Tapped Based Pillow Block Mounted Unit Bearing, 1.575 in Bore (ID), Insert Bearing: SA208, Housing: TB208, with Locking Collar

Out of stock
$39.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SATB208
  • Housing TB208
  • Insert Bearing SA208
  • Bore (ID) 1.575 in | 40 mm
  • Height 3.937 in | 100 mm
  • Length 4.626 in | 117.5 mm
  • Bolt to Bolt 3.5 in | 88.9 mm
Description

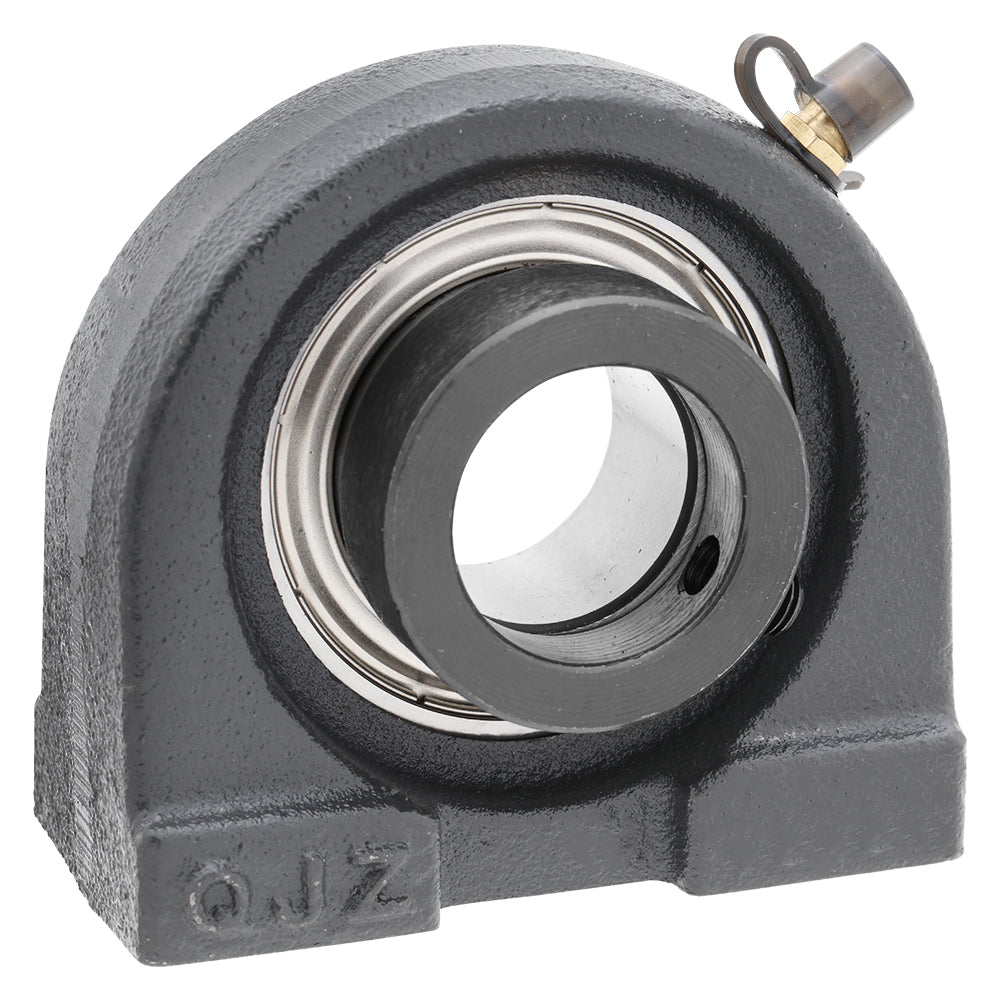

Tapped Based Pillow Block Mounted Unit Ball Bearing: SATB208

The SA series Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA208) and a cast iron housing (TB208) with a locking collar, designed for easy installation and long-lasting performance.

Model SATB208
Shaft Bore (ID) 1.575 in | 40 mm
Length 4.626 in | 117.5 mm
Width 1.874 in | 47.6 mm
Height (Thickness) 3.937 in | 100 mm
Bolt to Bolt Spacing 3.5 in | 88.9 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
