SATB207, Tapped Based Pillow Block Mounted Unit Bearing, 1.378 in Bore (ID), Insert Bearing: SA207, Housing: TB207, with Locking Collar

Out of stock
SKU: SATB207
$24.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SATB207
Description

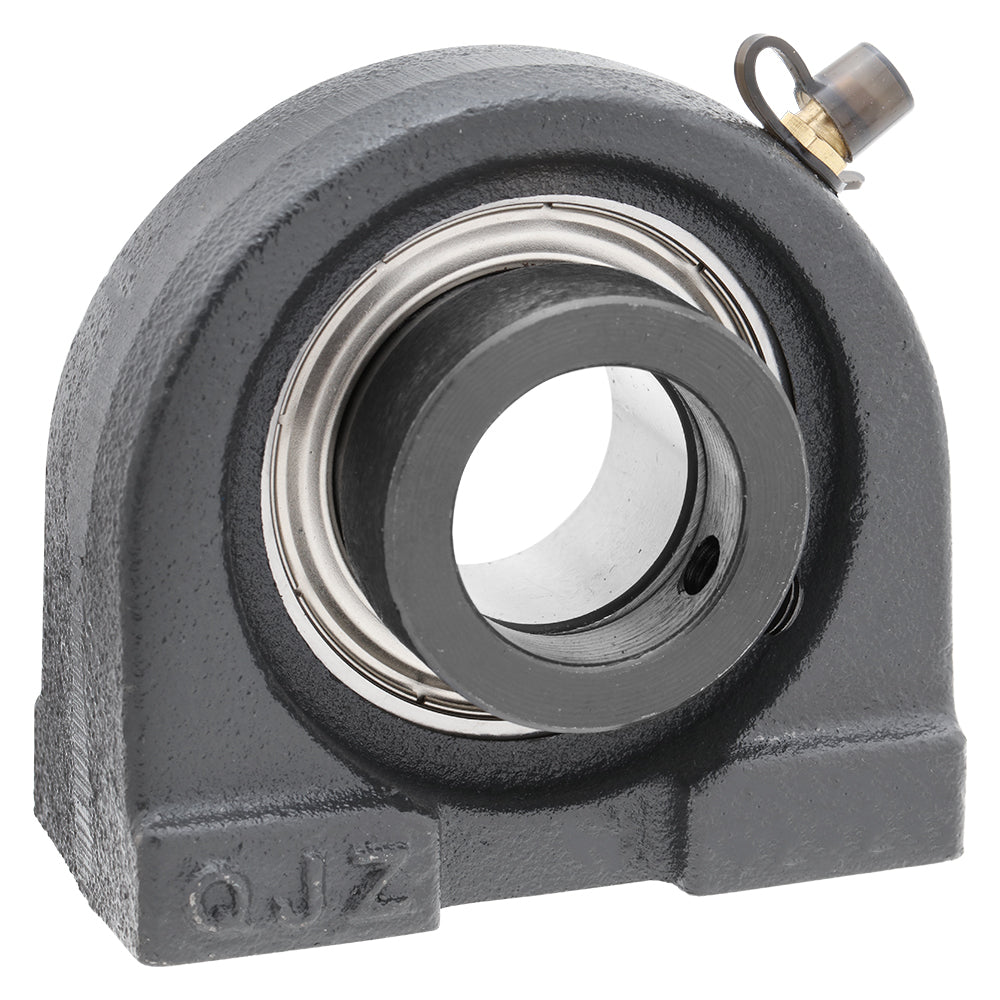

Tapped Based Pillow Block Mounted Unit Ball Bearing: SATB207

The SA series Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA207) and a cast iron housing (TB207) with a locking collar, designed for easy installation and long-lasting performance.

Model SATB207
Shaft Bore (ID) 1.378 in | 35 mm
Length 4.248 in | 107.899 mm
Width 1.874 in | 47.6 mm
Height (Thickness) 3.752 in | 95.3 mm
Bolt to Bolt Spacing 3.248 in | 82.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
