SATB206-20, Tapped Based Pillow Block Mounted Unit Bearing, 1 1/4 in Bore (ID), Insert Bearing: SA206-20, Housing: TB206, with Locking Collar
Regular price
$24.50
Couldn't load pickup availability

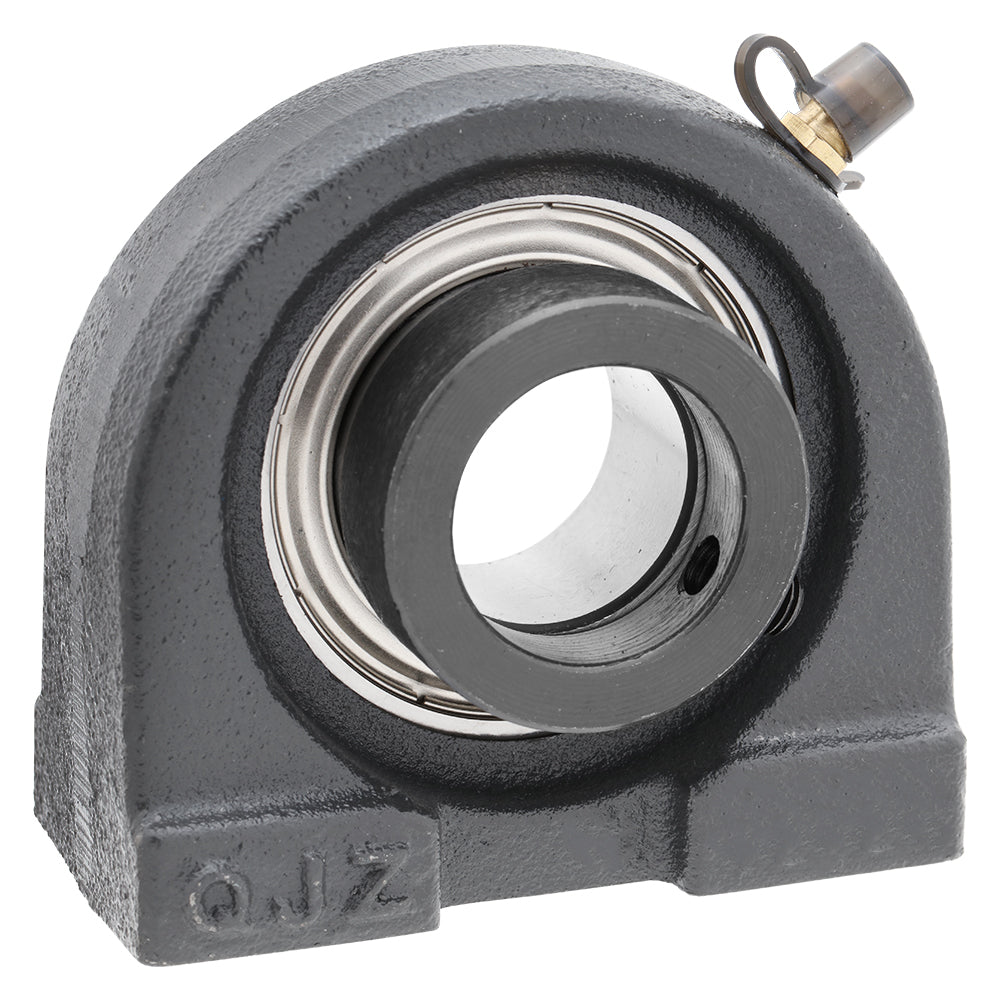

Tapped Based Pillow Block Mounted Unit Ball Bearing: SATB206-20
The SA series Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA206-20) and a cast iron housing (TB206) with a locking collar, designed for easy installation and long-lasting performance.
| Model | SATB206-20 |
|---|---|
| Shaft Bore (ID) | 1.25 in | 31.75 mm |
| Length | 4 in | 101.6 mm |
| Width | 1.5 in | 38.1 mm |
| Height (Thickness) | 3.413 in | 86.7 mm |
| Bolt to Bolt Spacing | 3 in | 76.2 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
