QJZ

SATB206, Tapped Based Pillow Block Mounted Unit Bearing, 1.181 in Bore (ID), Insert Bearing: SA206, Housing: TB206, with Locking Collar

Out of stock
SKU: SATB206
$24.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SATB206
Description

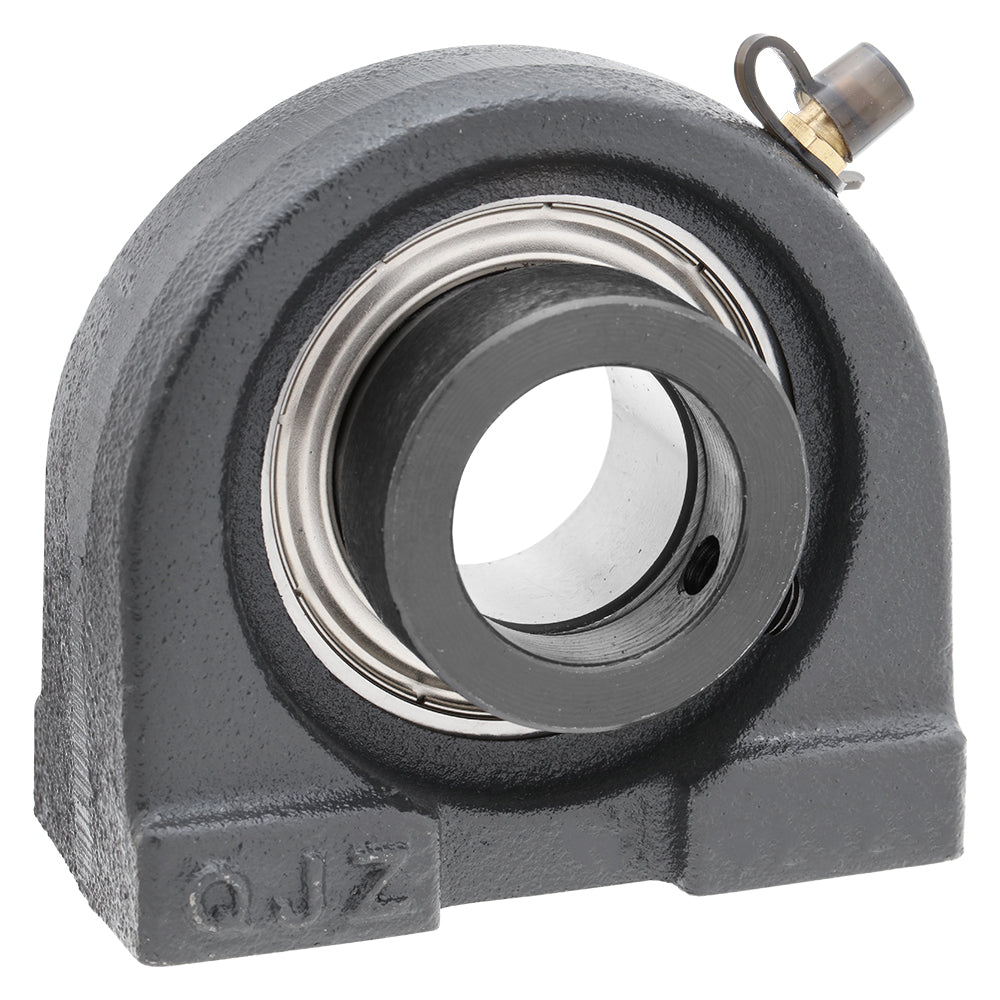

Tapped Based Pillow Block Mounted Unit Ball Bearing: SATB206

The SA series Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA206) and a cast iron housing (TB206) with a locking collar, designed for easy installation and long-lasting performance.

Model SATB206
Shaft Bore (ID) 1.181 in | 30 mm
Length 4 in | 101.6 mm
Width 1.5 in | 38.1 mm
Height (Thickness) 3.413 in | 86.7 mm
Bolt to Bolt Spacing 3 in | 76.2 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
