QJZ

SATB204, Tapped Based Pillow Block Mounted Unit Bearing, 0.787 in Bore (ID), Insert Bearing: SA204, Housing: TB204, with Locking Collar

Out of stock
SKU: SATB204
Please double check your vehicle fitment using the vehicle check bar or checking the description below.
$14.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SATB204

Please contact us if you are unsure about the fitment.

Description

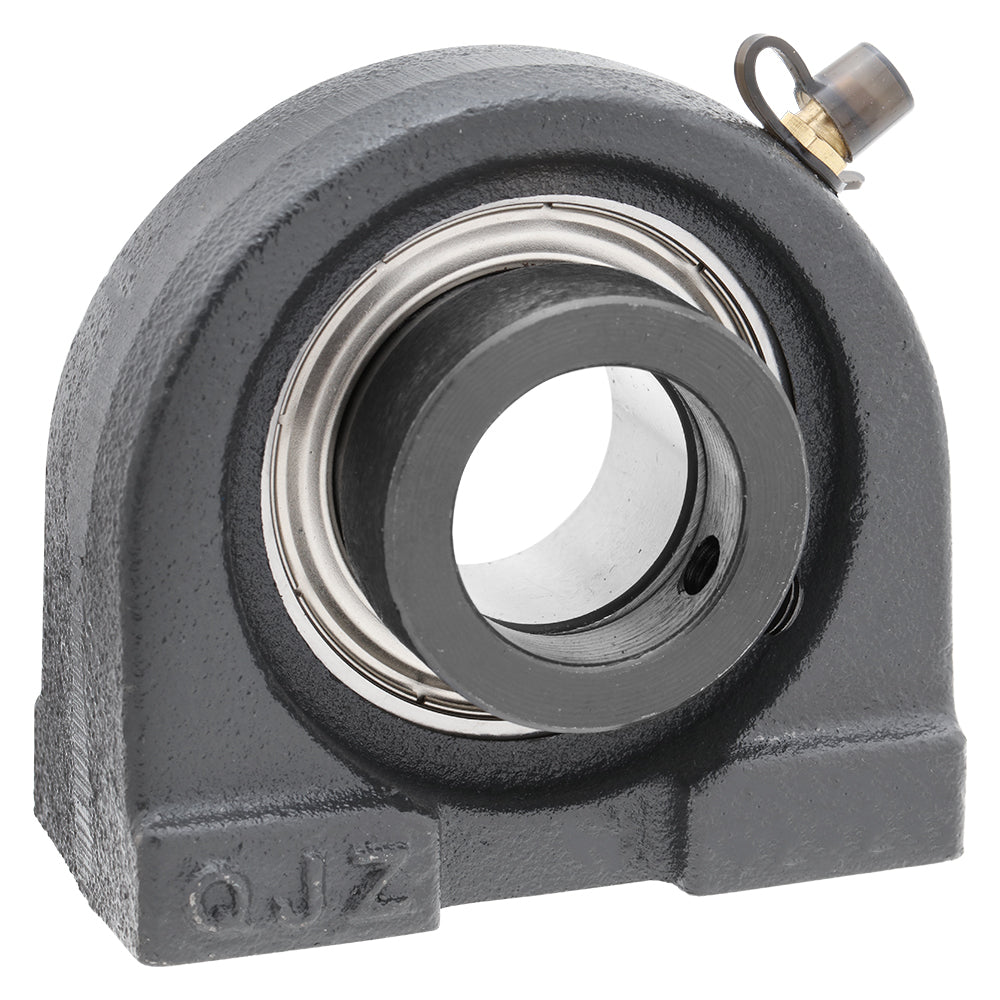

Tapped Based Pillow Block Mounted Unit Ball Bearing: SATB204

The SA series Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA204) and a cast iron housing (TB204) with a locking collar, designed for easy installation and long-lasting performance.

Model SATB204
Shaft Bore (ID) 0.787 in | 20 mm
Length 2.874 in | 73 mm
Width 1.5 in | 38.1 mm
Height (Thickness) 2.563 in | 65.1 mm
Bolt to Bolt Spacing 2 in | 50.8 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
