QJZ

SAP209-28G, Pillow Block Mounted Unit Ball Bearing, 1 3/4 in Bore (ID), Insert Bearing: SA209-28G, Housing: P209, with Locking Collar

In stock
$31.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP209-28G
  • Housing P209
  • Insert Bearing SA209-28G
  • Bore (ID) 1.75 in | 44.45 mm
  • Height 4.173 in | 106 mm
  • Length 7.441 in | 189 mm
  • Bolt to Bolt 5.748 in | 146 mm
Description

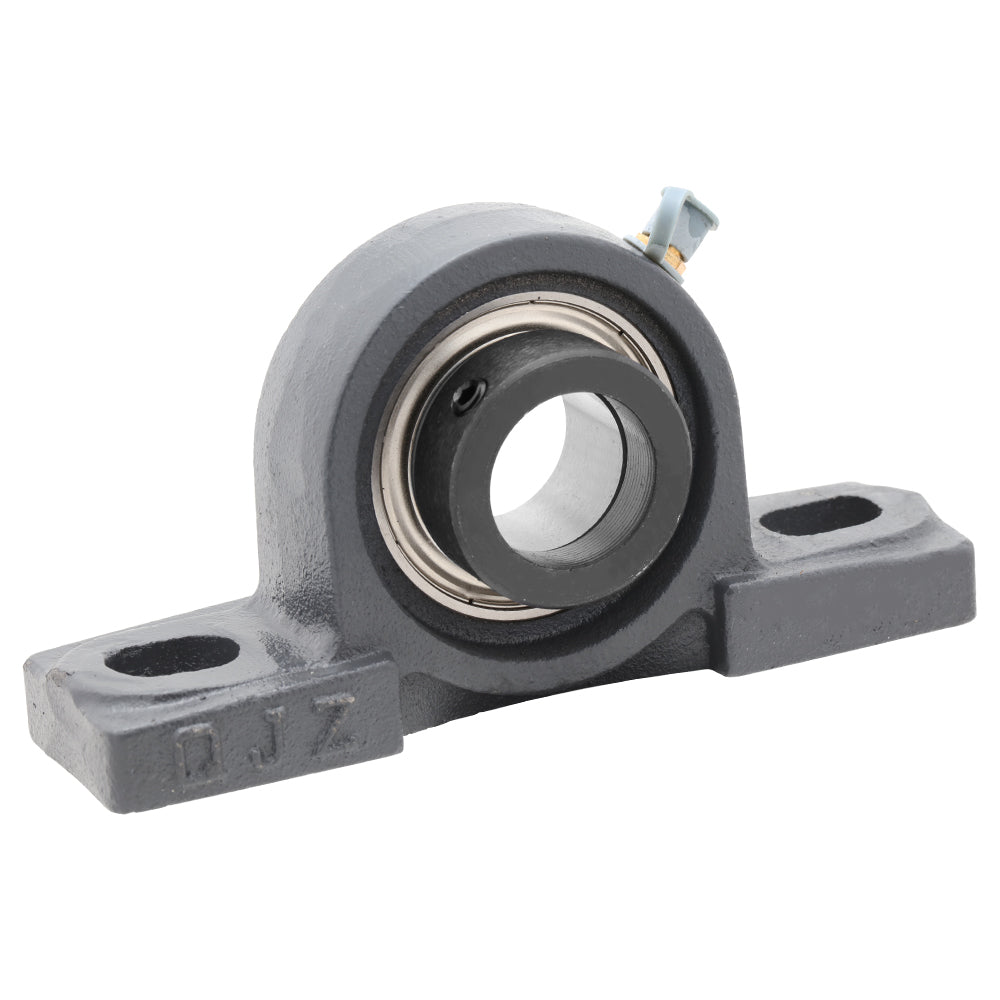

Pillow Block Mounted Unit Ball Bearing: SAP209-28G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA209-28G) and a cast iron housing (P209) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP209-28G
Shaft Bore (ID) 1.75 in | 44.45 mm
Length 7.441 in | 189 mm
Width 2.126 in | 54 mm
Height (Thickness) 4.173 in | 106 mm
Bolt to Bolt Spacing 5.748 in | 146 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
