QJZ

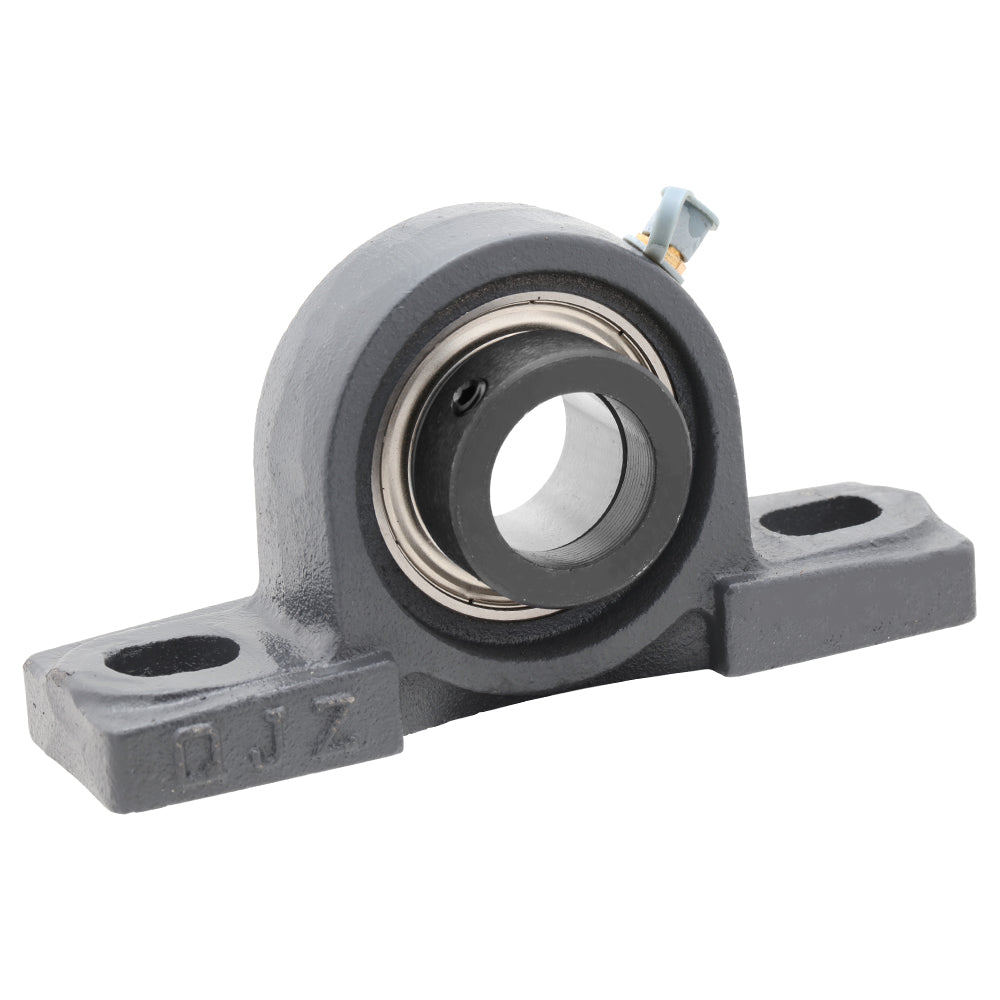

SAP208G, Pillow Block Mounted Unit Ball Bearing, 1.575 in Bore (ID), Insert Bearing: SA208G, Housing: P208, with Locking Collar

Out of stock
$26.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP208G
  • Housing P208
  • Insert Bearing SA208G
  • Bore (ID) 1.575 in | 40 mm
  • Height 3.858 in | 98 mm
  • Length 7.087 in | 180 mm
  • Bolt to Bolt 5.354 in | 136 mm
Description

Pillow Block Mounted Unit Ball Bearing: SAP208G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA208G) and a cast iron housing (P208) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP208G
Shaft Bore (ID) 1.575 in | 40 mm
Length 7.087 in | 180 mm
Width 2.047 in | 52 mm
Height (Thickness) 3.858 in | 98 mm
Bolt to Bolt Spacing 5.354 in | 136 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
