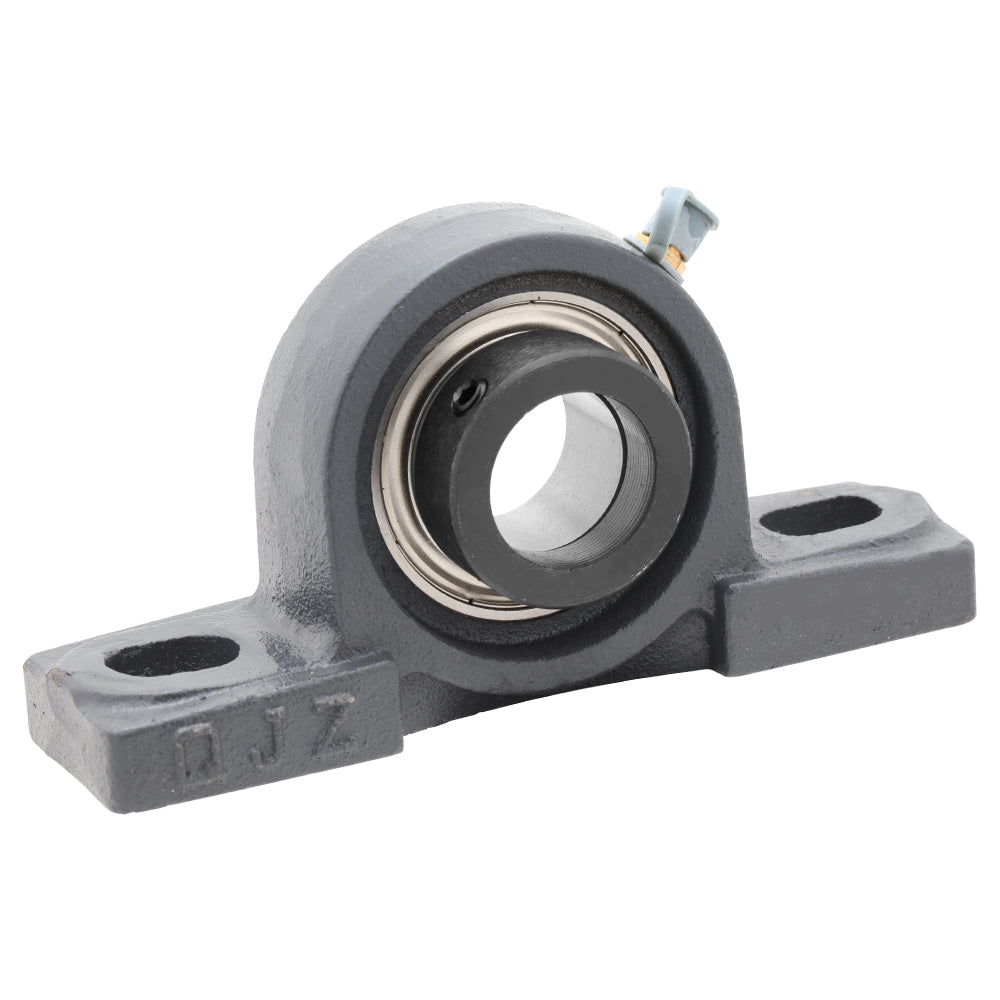

SAP207-20G, Pillow Block Mounted Unit Ball Bearing, 1 1/4 in Bore (ID), Insert Bearing: SA207-20G, Housing: P207, with Locking Collar

In stock
$19.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP207-20G
  • Housing P207
  • Insert Bearing SA207-20G
  • Bore (ID) 1.25 in | 31.75 mm
  • Height 3.622 in | 92 mm
  • Length 6.575 in | 167 mm
  • Bolt to Bolt 4.961 in | 126 mm
Description

Pillow Block Mounted Unit Ball Bearing: SAP207-20G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA207-20G) and a cast iron housing (P207) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP207-20G
Shaft Bore (ID) 1.25 in | 31.75 mm
Length 6.575 in | 167 mm
Width 1.89 in | 48 mm
Height (Thickness) 3.622 in | 92 mm
Bolt to Bolt Spacing 4.961 in | 126 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
